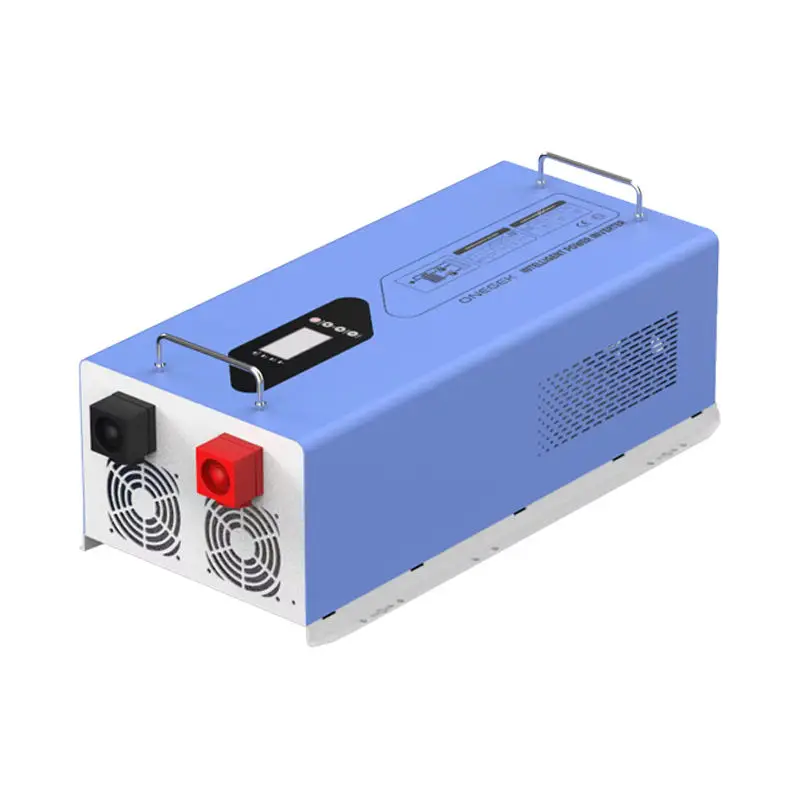

Ruihan MPPT Solar Hybrid Inverter 3KW-10KW | Off Grid Three Phase
Price on request
Off-grid MPPT solar hybrid inverter with an integrated solar charge controller. Rated power from 3KW to 10KW, three phase and single phase output, 91% inverter efficiency and battery banks from 24V to 96V.
This system is configured per project. Send us your requirements for a tailoredproposal within one business day.
Supplier’s customization ability verified
- Minor customization
- Drawing-based customization
- Sample-based customization
- Full customization
Guangdong Ruihan Electronics Technology Co., Ltd.
Guangzhou, CN ·3yrs · Multispecialty Supplier
4.9/5(14)
Store rating
≤3h
Response Time
≥ 95%
On-time dispatch rate
9%
Reorder rate
- Minor customization
- Drawing - based customization
Categories
How Can We Help You
You can contact us any way that isconvenient for you. We areavailable 24/7 via email ortelephone.
New Products
Ruihan MPPT solar hybrid inverters pair a solar MPPT charge controller with a mains charger and inverter in one integrated machine, so a single unit manages solar charging, utility charging and AC output for off-grid homes and small commercial sites. The D-series covers 3KW to 10KW rated power with 24V to 96V battery banks and 91% inverter efficiency.

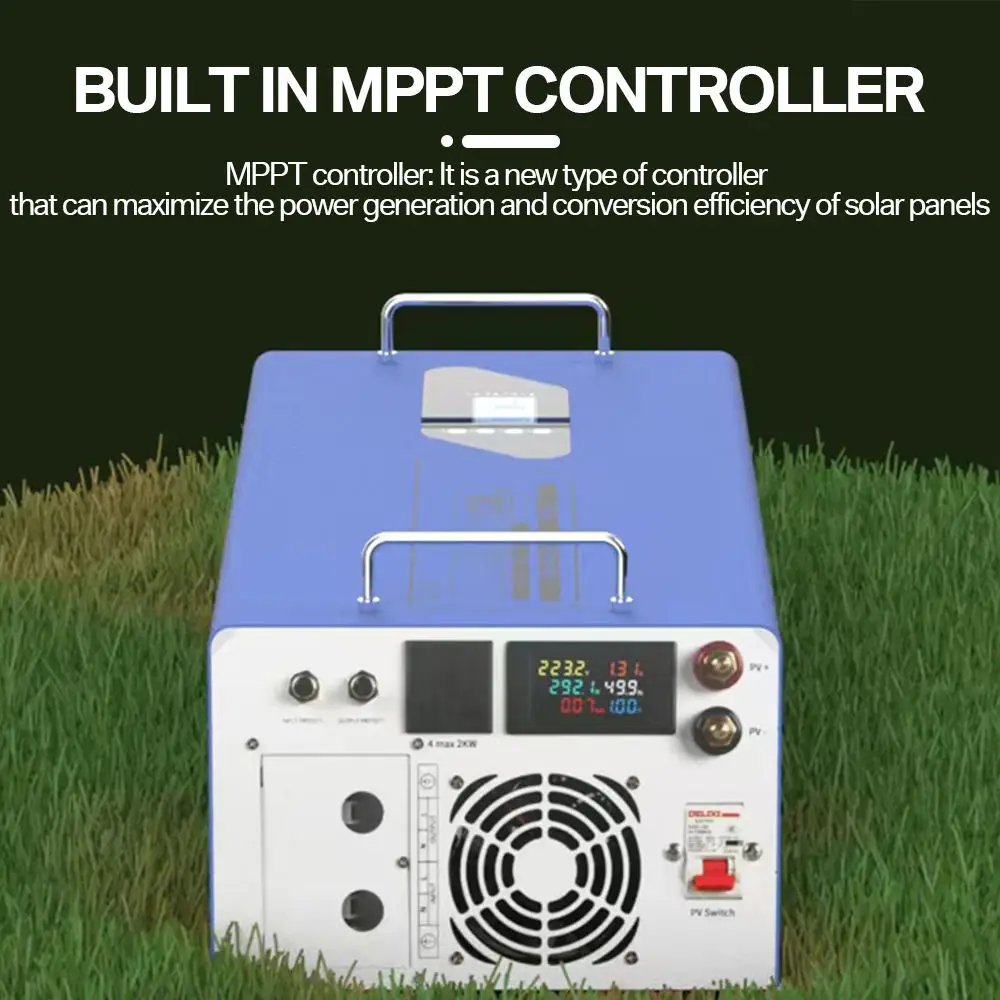

MPPT Solar Charge Control
Solar input is managed by an integrated MPPT controller, while the mains input accepts 220V AC for utility charging and pass-through. Output is available in single, multiple and three phase configurations at 50Hz or 60Hz, with a conversion time of ≤4ms when the system switches between mains and battery mode.
Model Range
| Model | D1 | D2 | D3 | D4 | D5 | D6 | D7 |
| Rated power | 3000W | 4000W | 5000W | 6000W | 7000W | 8000W | 10000W |
| Battery voltage | 24V/48V | 24V/48V | 24V/48V | 48V/96V | 48V/96V | 48V/96V | 48V/96V |
| Net weight | 27KG | 30KG | 33KG | 35KG | 38KG | 43KG | 45KG |
Specifications
| Brand | Ruihan |
| Model Number | Solar inverter |
| Type | DC/AC Inverters |
| Inverter Type | Central Inverter |
| Output Type | Multiple, Three Phase, Single |
| Application | Off-Grid Solar System |
| Inverter Efficiency | 91% |
| Rated Power | 3KW to 10KW |
| Input Voltage | 220V AC |
| Output Voltage | 220V AC |
| Output Frequency | 50Hz, 60Hz |
| Battery Voltage | 24V to 96V |
| Battery Type | Lead-acid, gel, lithium iron phosphate, ternary lithium |
| Conversion Time | ≤4ms |
| Display | LCD display |
| Chassis Size | 650*300*200 |
| Packing Size | 680*320*210mm |
| Net Weight | 27KG to 45KG |
| Place of Origin | Guangdong, China |
| Warranty | Two years free replacement parts |
Operating Modes
- Battery priority mode
- Utility priority mode
- Energy saving mode
- Unattended mode
Protection
Intelligent detection with automatic protection against overload, overvoltage, overcurrent, high voltage, low voltage, high temperature and low temperature.
Ordering and Customization
- Customization available: minor customization, drawing-based customization, sample-based customization, full customization
- Minimum order quantity: 1 piece
- Lead time: 3 days for 1 piece, 7 days for 2-100 pieces, 10 days for 101-1,000 pieces; above 1,000 pieces to be negotiated
