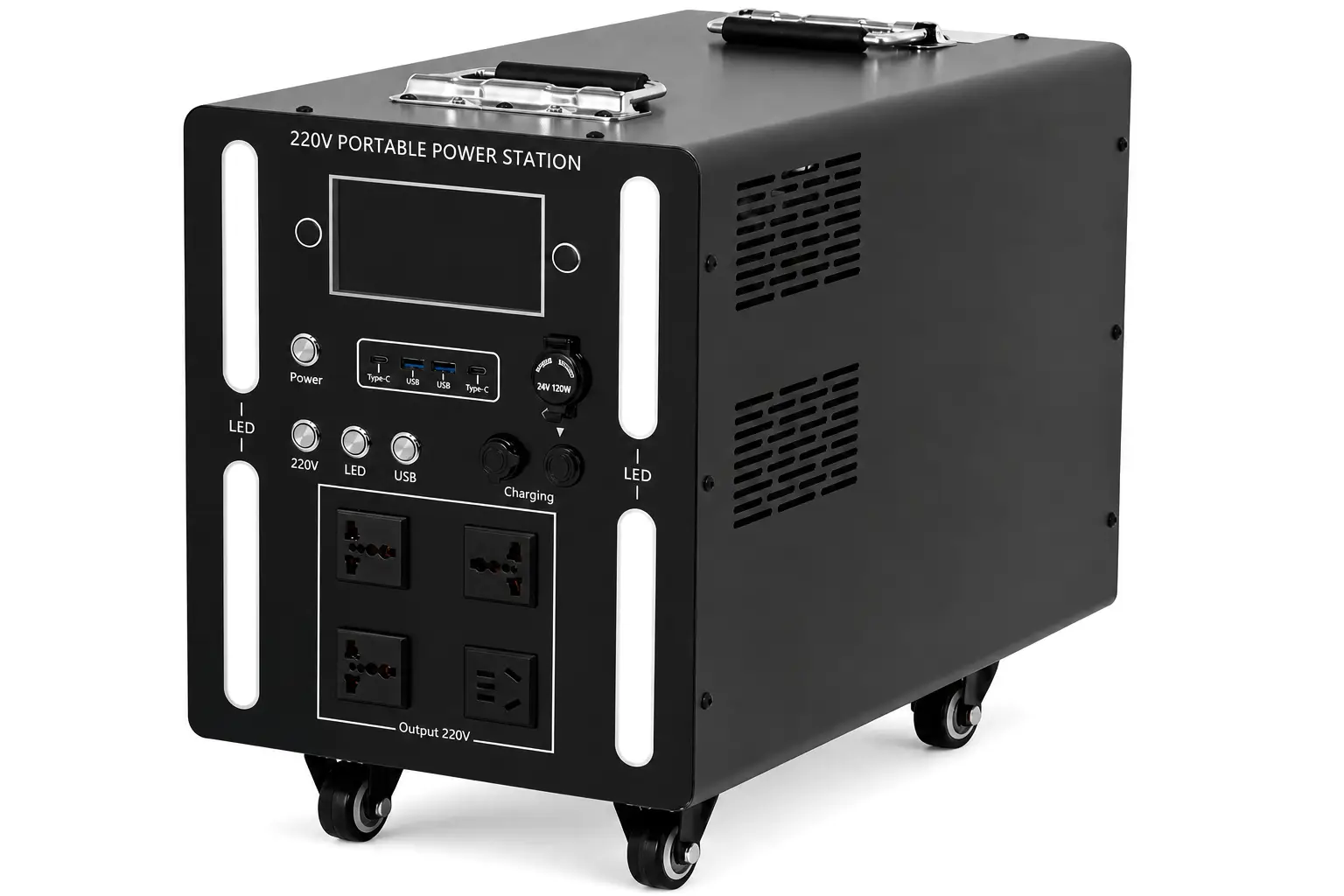

Ruihan Heavy-Duty Alloy-Shell LiFePO4 Power Station — 2000W to 8000W, Mobile Cart (3000Wh to 30000Wh)
Price on request
Ruihan’s heavy-duty alloy-shell power station cart covers seventeen configurations across three body sizes: a 2000W, 3000W, 5000W or 8000W pure sine wave inverter paired with a LiFePO4 battery from 3000Wh to 30000Wh. Four universal 220V AC outlets, a 24V 120W DC output, two 60W Type-C ports and two QC3.0 USB ports sit on one panel, with an LCD readout and four LED lighting bars. Every model rolls on castor wheels with a top handle, from 28 kg to 140 kg, and from 5000W upward the cart also provides vehicle jump start. Five-hour charging from mains, solar or vehicle. Price on request — wholesale, distribution and OEM enquiries welcome.
This system is configured per project. Send us your requirements for a tailoredproposal within one business day.
Supplier’s customization ability verified
- Minor customization
- Drawing-based customization
- Sample-based customization
- Full customization
Guangdong Ruihan Electronics Technology Co., Ltd.
Guangzhou, CN ·3yrs · Multispecialty Supplier
4.9/5(14)
Store rating
≤3h
Response Time
≥ 95%
On-time dispatch rate
9%
Reorder rate
- Minor customization
- Drawing - based customization
Categories
How Can We Help You
You can contact us any way that isconvenient for you. We areavailable 24/7 via email ortelephone.
New Products
3000Wh to 30000Wh, 2000W to 8000W — Seventeen Ways to Buy Industrial Power on Wheels
This is the heavy end of the Ruihan alloy-shell range: a wheeled steel-and-alloy cart in three body sizes, carrying a pure sine wave inverter rated at 2000W, 3000W, 5000W or 8000W and a LiFePO4 battery from 3000Wh up to 30000Wh. Seventeen factory configurations cover everything from a mobile workshop outlet to a two-day site or event supply, and every one of them shares the same panel, the same 24V DC architecture and the same spare-parts list — so a mixed container is one conversation, not seventeen.

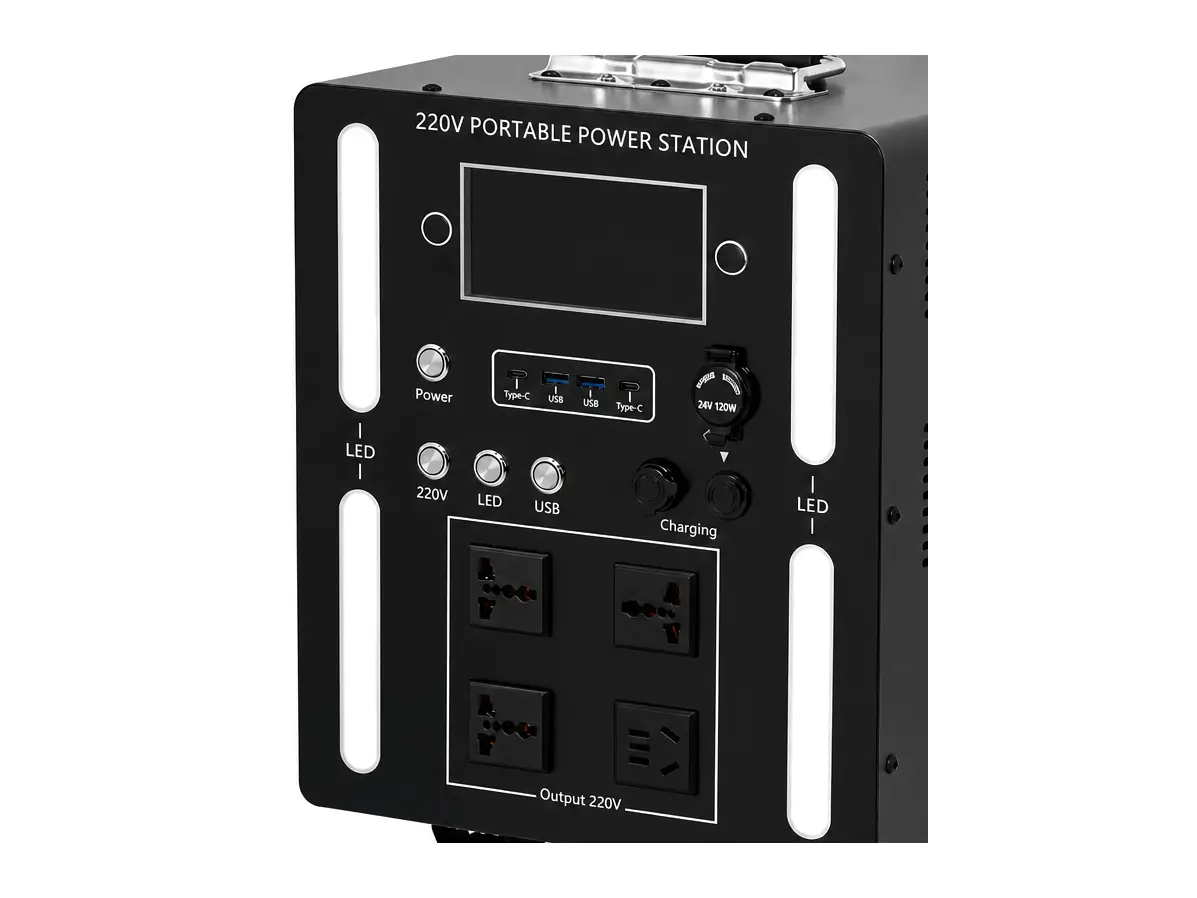

The chassis is built to be moved rather than carried. Four castor wheels and a top handle let a 138 kg unit be rolled across a yard or into a van by one person, while the panel is laid out for serious loads: four universal AC sockets delivering 220V 50Hz from the pure sine wave inverter, a 24V DC output rated 120W, two Type-C ports at 60W each, two USB ports running 5V/QC3.0, and four vertical LED bars that light a site when the sun goes down. An LCD keeps the state of charge visible, and a full charge takes five hours from the mains, a solar array or a vehicle. From the 400A5000W model upward, the unit also carries vehicle jump-start capability.
🏭
Up to 8000W Output
Four inverter ratings from 2000W to 8000W, pure sine wave throughout — enough for heavy tools, compressors and multiple appliances at once.
🔋
Up to 30 kWh LiFePO4
3000Wh to 30000Wh of lithium iron phosphate — multi-day runtime for sites, events and backup duty, rated at 2,000 cycles.
🛞
Wheeled Chassis
Four castor wheels and a top handle on every model — units up to 138 kg are rolled, not lifted, into position.
🔌
4 × AC, 24V DC, 2 × Type-C
Four universal 220V outlets, a 120W 24V DC output, two 60W Type-C ports and two QC3.0 USB ports on the same panel.
🚐

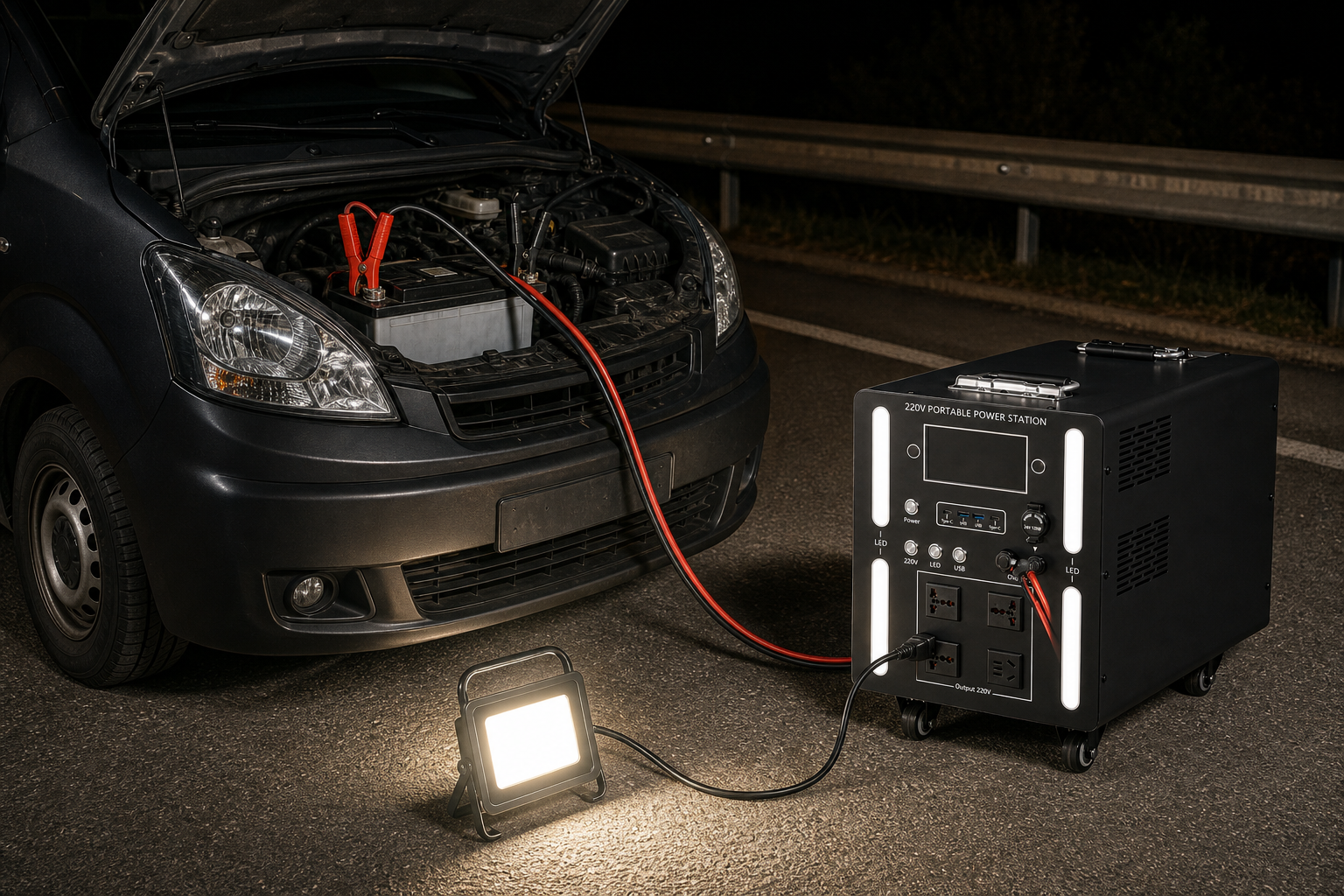

Vehicle Jump Start
From 5000W upward the cart doubles as a jump-starter for vehicles — recovery duty from the same unit that powers the site.
☀️
Mains, Solar or Car
Three charging routes and a five-hour full charge, with built-in LED bars for work after dark.
2000-8000W
Rated output
3-30 kWh
Capacity
4 × AC
Universal outlets
24V / 120W
DC output
5 h
Full charge
Model Comparison — All Seventeen Configurations
| Model | Capacity | Rated output | Body (cm) | Carton (cm) | Net / Gross | Jump start |
|---|---|---|---|---|---|---|
| 360A/2000W | 4500Wh | 2000W | 60 x 30 x 30 | 64.5 x 43 x 52 | 30 / 36 kg | – |
| 240A3000W | 3000Wh | 3000W | 60 x 30 x 30 | 64.5 x 43 x 52 | 28 / 32 kg | – |
| 300A3000W | 3600Wh | 3000W | 60 x 30 x 30 | 64.5 x 43 x 52 | 33 / 35 kg | – |
| 400A3000W | 5000Wh | 3000W | 60 x 30 x 30 | 74.5 x 43 x 52 | 36 / 39.5 kg | – |
| 500A3000W | 7000Wh | 3000W | 60 x 30 x 30 | 74.5 x 43 x 52 | 40 / 45 kg | – |
| 400A5000W | 5000Wh | 5000W | 60 x 30 x 30 | 74.5 x 43 x 52 | 39 / 43 kg | Yes |
| 500A5000W | 7000Wh | 5000W | 60 x 30 x 30 | 74.5 x 43 x 52 | 43 / 47 kg | Yes |
| 800A5000W | 10000Wh | 5000W | 60 x 30 x 40 | 74.5 x 43 x 52 | 61 / 72 kg | Yes |
| 1000A/5000W | 12000Wh | 5000W | 60 x 30 x 40 | 74.5 x 43 x 59 | 66 / 80 kg | Yes |
| 1200A/5000W | 15000Wh | 5000W | 60 x 30 x 40 | 74.5 x 43 x 59 | 75 / 90 kg | Yes |
| 1500A/5000W | 20000Wh | 5000W | 68 x 45 x 48 | 87.5 x 55 x 65.5 | 112 / 126 kg | Yes |
| 2400A/5000W | 30000Wh | 5000W | 68 x 45 x 48 | 87.5 x 55 x 65.5 | 138 / 158 kg | Yes |
| 500A 8000W | 7000Wh | 8000W | 60 x 30 x 40 | 74.5 x 43 x 52 | 50 / 66 kg | Yes |
| 800A 8000W | 10000Wh | 8000W | 60 x 30 x 40 | 74.5 x 43 x 59 | 62 / 78 kg | Yes |
| 1200A 8000W | 15000Wh | 8000W | 60 x 30 x 40 | 74.5 x 43 x 59 | 78 / 92 kg | Yes |
| 1600A 8000W | 20000Wh | 8000W | 68 x 45 x 48 | 87.5 x 55 x 65.5 | 113 / 130 kg | Yes |
| 2400A 8000W | 30000Wh | 8000W | 68 x 45 x 48 | 87.5 x 55 x 65.5 | 140 / 160 kg | Yes |
* Common to all seventeen configurations: LiFePO4 battery · alloy housing (black) · pure sine wave inverter · 4 x universal AC outlet, 220V 50Hz (China / US / EU specification) · DC output 24V, 120W · 2 x Type-C 60W · 2 x USB 5V/QC3.0 · LCD display · 4 x LED lighting bar · 2,000 cycle life · operating temperature −10 to 75°C · 5-hour charge · mains, solar and vehicle charging · castor wheels and top handle. Carton dimensions are given for the standard export carton. Price on request.
Frequently Asked Questions
How do I choose between the seventeen models?
Two decisions. First the inverter: 2000W covers lighting, small appliances and hand tools; 3000W adds larger tools and compressors; 5000W runs heavy site equipment and multiple appliances together; 8000W is for the heaviest single loads in this range. Then the battery for runtime — 3000Wh for a working day, 10000 to 15000Wh for multi-day site or event duty, 20000 to 30000Wh for fixed backup and recovery vehicles. All seventeen share one panel, so mixed container loads are simple.
Which models support vehicle jump start?
Every model from the 400A5000W upward — that is all of the 5000W and 8000W configurations. The 2000W and 3000W models are power supply units only. If recovery or fleet support is part of the requirement, start at the 400A5000W and confirm the vehicle class with our sales team.
Is a unit this heavy really portable?
Yes — every model sits on four castor wheels with a top handle, and the weights run from 28 kg to 140 kg net. Units up to roughly 80 kg can be rolled and lifted by one person on level ground; the 112 kg and 140 kg models in the 68 x 45 x 48 cm body are best moved by two people or with a ramp into a vehicle.
What can the panel run at once?
Four universal 220V AC outlets, a 24V DC output rated 120W, two 60W Type-C ports and two USB ports running 5V/QC3.0 — so site equipment on AC while phones, tablets and laptops charge on the DC side without loading the inverter. The pure sine wave output keeps motors and electronics running without the noise or heat of a modified sine wave.
How long does charging take, and from what sources?
Five hours to full from the mains. The same unit can also be charged from a solar array or from a vehicle, which is what makes the larger capacities practical on a site without a grid connection. An LCD readout keeps the state of charge visible, and the four LED bars provide light for night work.
Can I mix models or order with my own branding?
Yes. All seventeen configurations share the same panel and the same 24V DC architecture, so mixed container loads are straightforward, and OEM/ODM options — logo, packaging, panel labelling, output voltages and carton marking — are available at MOQ. Contact our sales team for wholesale pricing, samples, lead times and freight quotations by model.
