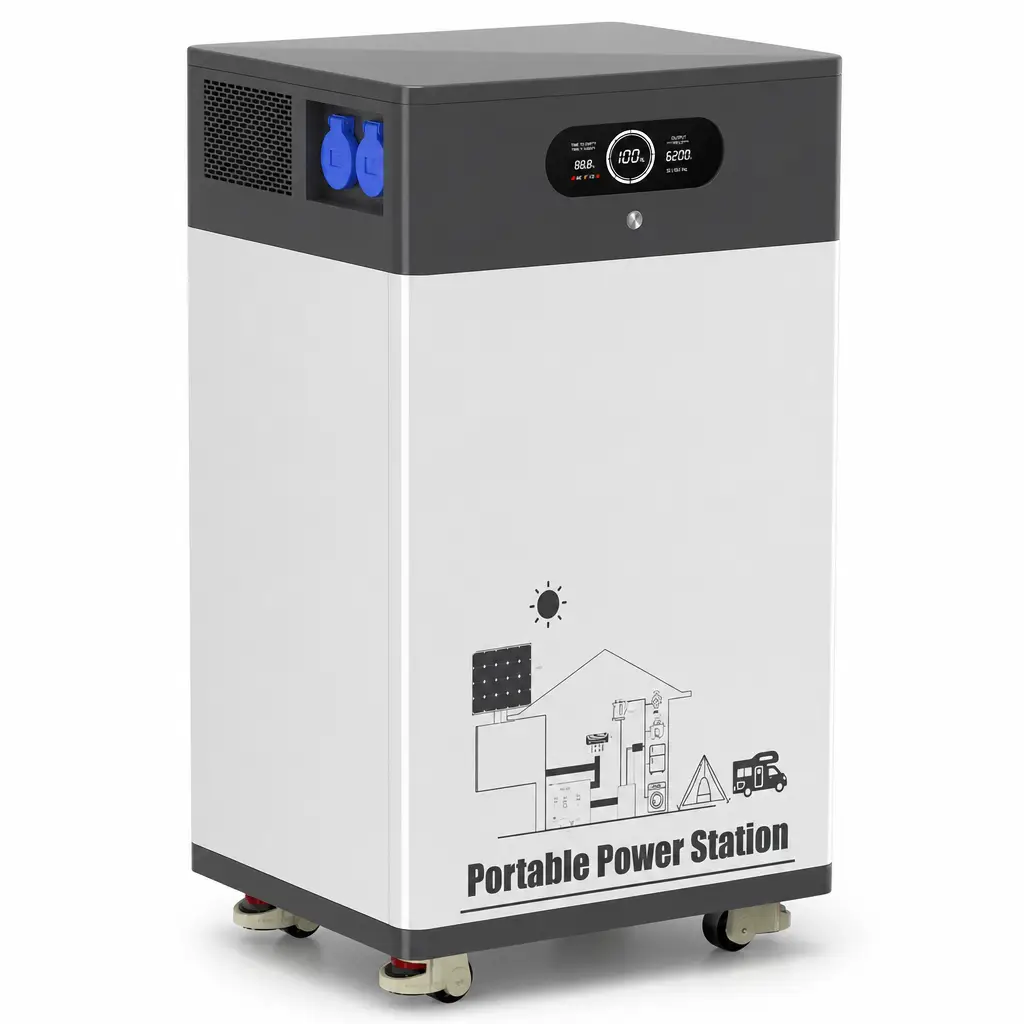

L-60T 6200W UPS Portable Power Station
Price on request
The L-60T is a 6200W upright power station with 16000Wh (L-60T-A) or 20000Wh (L-60T-B) of storage — a bidirectional inverter with built-in UPS, two 110V/220V AC outlets, a 48V DC output, built-in coulometer and a 120-500V 5000W MPPT solar input. The 3500W fast charger refills in about 6 hours; suggested PV is 4200W. It rolls on four braked casters. Factory-direct wholesale, OEM and distribution enquiries welcome.
This system is configured per project. Send us your requirements for a tailoredproposal within one business day.
Supplier’s customization ability verified
- Minor customization
- Drawing-based customization
- Sample-based customization
- Full customization
Guangdong Ruihan Electronics Technology Co., Ltd.
Guangzhou, CN ·3yrs · Multispecialty Supplier
4.9/5(14)
Store rating
≤3h
Response Time
≥ 95%
On-time dispatch rate
9%
Reorder rate
- Minor customization
- Drawing - based customization
Categories
How Can We Help You
You can contact us any way that isconvenient for you. We areavailable 24/7 via email ortelephone.
New Products
L-60T — 6200W of Whole-Property Power, UPS-Switched

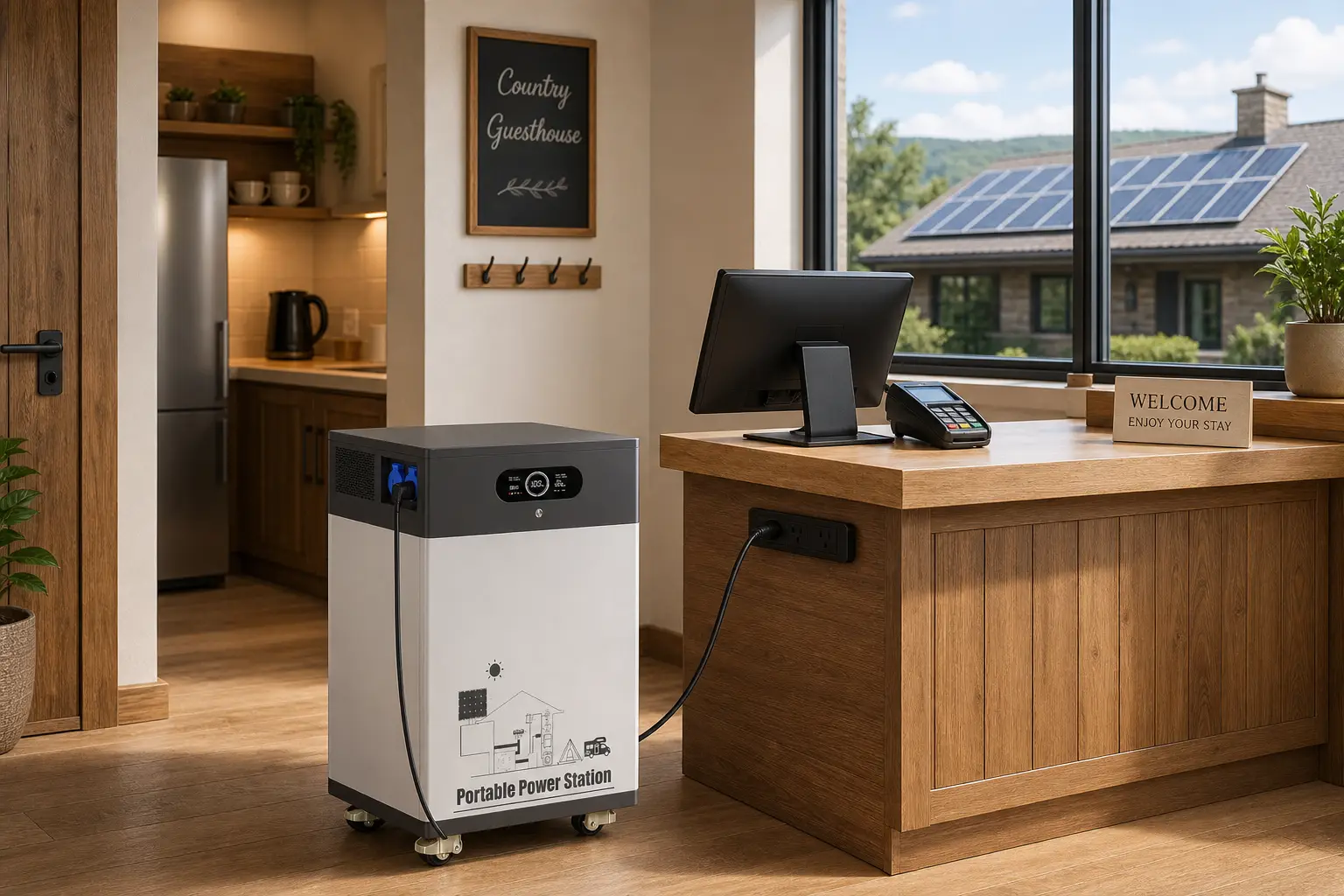

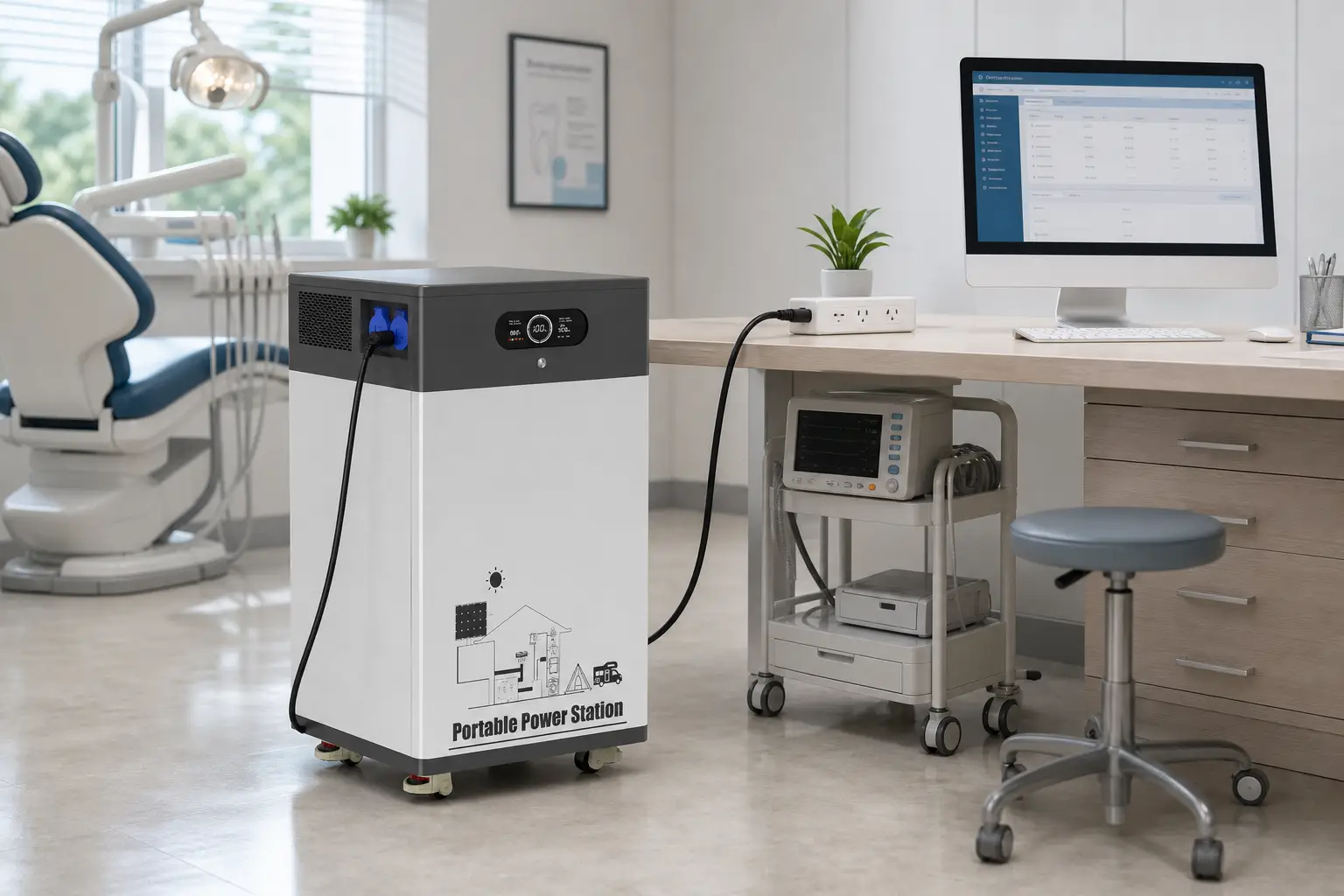

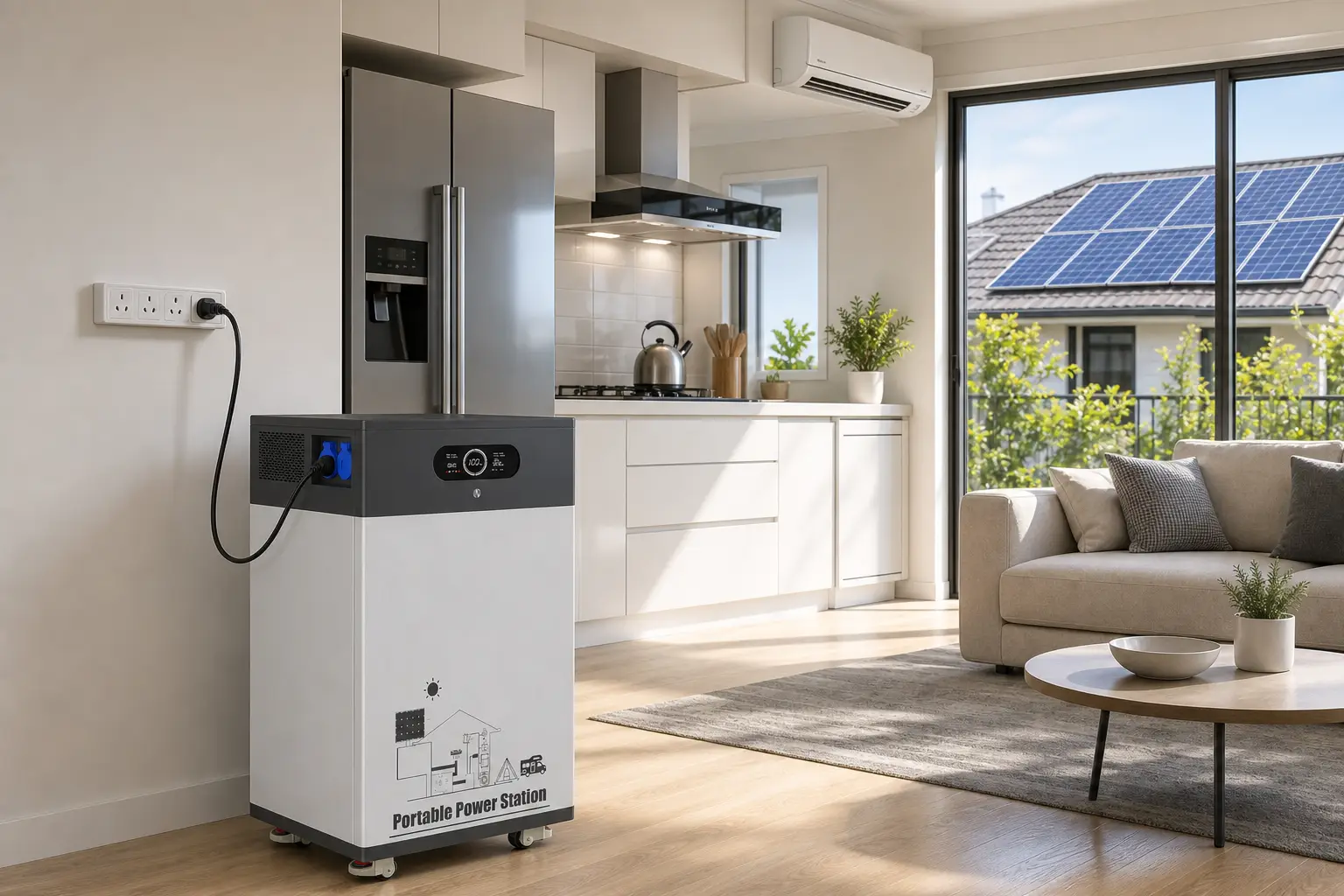

The Ruihan L-60T is a 6200W upright power station built for loads that small power stations cannot carry: whole homes, clinics and guesthouses through outages, day after day. A bidirectional inverter delivers clean AC through two 110V/220V outlets — dual voltage for US-standard and EU-standard markets — with a built-in UPS function that switches to battery seamlessly the moment the grid drops. A 48V DC output, a 7W LED light and a built-in coulometer complete the package.
Two capacity grades share one footprint (430 x 365 x 800mm): the L-60T-A (16000Wh, 130kg) and the L-60T-B (20000Wh, 135kg). The 3500W fast charger refills either version in about 6 hours from the wall — or connect solar panels to the MPPT input (120-500V, up to 5000W), with 4200W of suggested PV, for whole-day solar recharge.
Four braked casters let the L-60T roll from a clinic corridor to a guesthouse utility corner to a home kitchen. Each unit ships with the charger and manual. Choose the A for standard whole-home backup, or the B for maximum endurance.
L-60T At a Glance
6200W
Bidirectional
16-20kWh
Capacity Range
UPS
Seamless Switch
5000W
MPPT 120-500V
110/220V
Dual-Voltage AC
Technical Specifications
| Parameter | L-60T-A | L-60T-B |
|---|---|---|
| Rated Power | 6200W | 6200W |
| Inverter | Bidirectional | Bidirectional |
| Capacity | 16000Wh* | 20000Wh* |
| UPS Function | Built-in | Built-in |

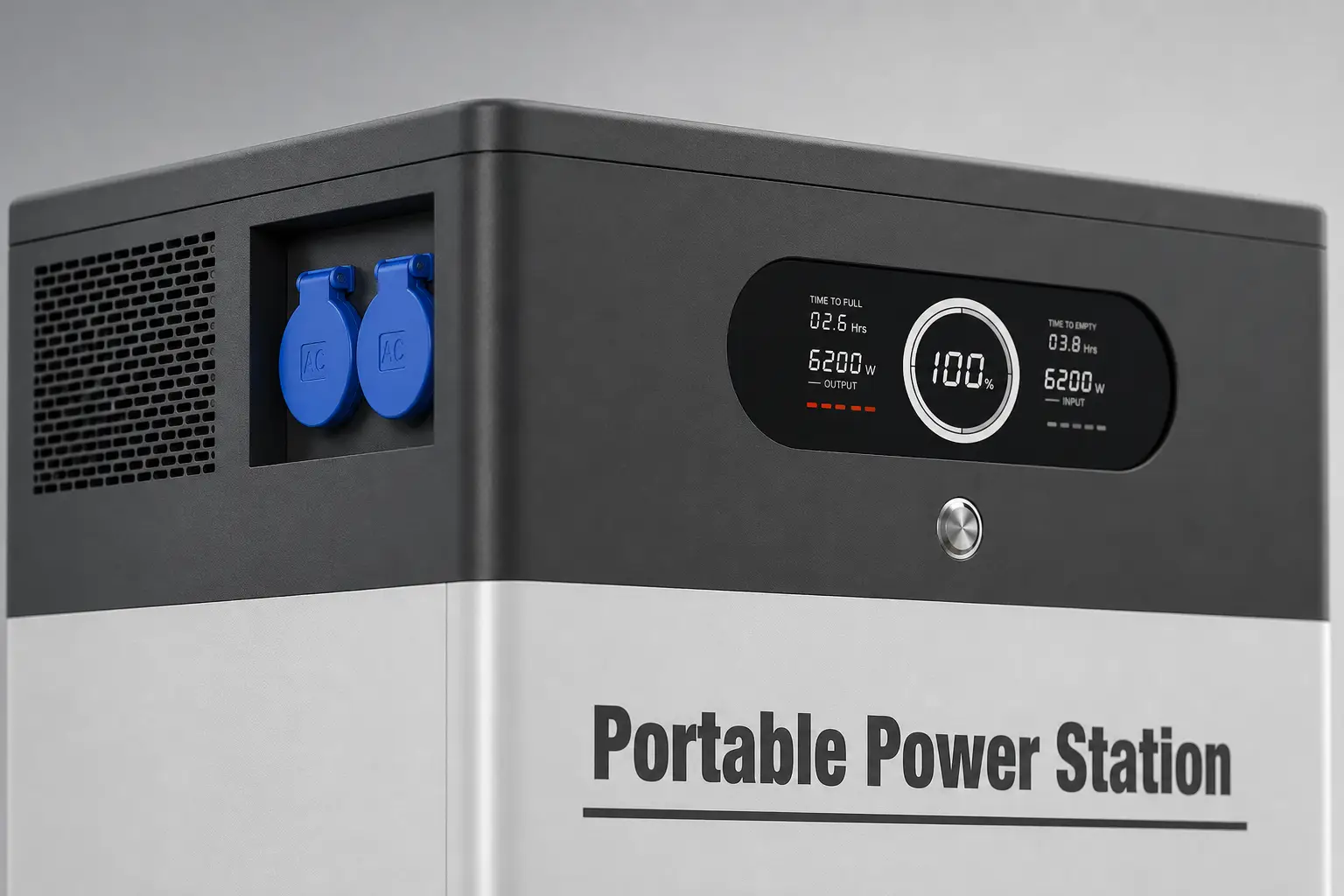

| AC Output | 2 x outlets, 110V/220V dual voltage (blue flip covers) | 2 x outlets, 110V/220V dual voltage (blue flip covers) |
| DC Output | 48V ~ 50A | 48V ~ 50A |
| Metering | Built-in coulometer | Built-in coulometer |
| LED Light | 7W | 7W |
| Charger | Fast charging 3500W | Fast charging 3500W |
| Charging Time | ~6h | ~6h |
| MPPT Solar Input | 120V-500V, 5000W | 120V-500V, 5000W |
| Suggested PV Panels | 4200W | 4200W |
| Product Size | 430 x 365 x 800mm | 430 x 365 x 800mm |
| Weight | 130kg | 135kg |
* Battery chemistry not stated in the supplier sheet — confirm before finalising. Charging times per supplier sheet. All versions ship with charger and manual.
Frequently Asked Questions
What can a 6200W power station run?
Refrigerators, freezers, air conditioners, washing machines, water pumps, clinic equipment and power tools within the 6200W rating — typical whole-property backup loads. A 48V DC output and 7W LED cover field equipment and lighting.
What is the difference between L-60T-A and L-60T-B?
Only the battery capacity differs: the L-60T-A carries 16000Wh (130kg) and the L-60T-B carries 20000Wh (135kg). Both deliver the same 6200W rated output through the same bidirectional inverter.
How long does it take to charge?
The 3500W fast charger reaches full capacity in about 6 hours from the wall. Through the MPPT input (120-500V, up to 5000W), solar charging speed depends on panel output — suggested PV is 4200W.
How does the UPS function work?
The built-in UPS switches from grid to battery seamlessly when the mains drops, so connected loads — computers, registers, monitors — keep running without interruption. This makes the L-60T suited to clinics, shops and home offices as well as whole-home backup.
How does the L-60T compare with the K-100T or P-6?
The K-100T (10KW) is a larger wheeled mobile unit for heavier whole-property loads; the P-6 is a 36kWh stackable fixed-installation home energy storage system. The L-60T (6200W, 16-20kWh) sits between them as a single upright cabinet on casters with UPS-grade switchover — movable backup for homes, clinics and guesthouses without fixed installation.
Is the L-60T available for wholesale or OEM?
Yes. Ruihan supplies the L-60T factory-direct for wholesale distribution and OEM/ODM customisation — branding, packaging and voltage configuration. Contact our sales team for tiered pricing, MOQ and lead times.
