BS-ABS15 Portable Power Station (2201-5120Wh)
Price on request
The Ruihan BS-ABS15 is a trolley portable power station in four grades from 2201Wh to 5120Wh — 25.6V LiFePO4 with pure sine wave AC (2500-5000W), five spring-cover AC outlets, DC 24V 10A x4, USB-A x2 + Type-C x2 (QC3.0 + PD) and dual XT90 fast-charge ports. It rolls on four casters behind a two-bar trolley handle, with orange corner guards, a built-in compass and an ABS + aluminium shell. Optional 110V, 2-year warranty, mains/solar/car charging in about 6-8 hours. Price on request — wholesale and OEM welcome.
This system is configured per project. Send us your requirements for a tailoredproposal within one business day.
Supplier’s customization ability verified
- Minor customization
- Drawing-based customization
- Sample-based customization
- Full customization
Guangdong Ruihan Electronics Technology Co., Ltd.
Guangzhou, CN ·3yrs · Multispecialty Supplier
4.9/5(14)
Store rating
≤3h
Response Time
≥ 95%
On-time dispatch rate
9%
Reorder rate
- Minor customization
- Drawing - based customization
Categories
How Can We Help You
You can contact us any way that isconvenient for you. We areavailable 24/7 via email ortelephone.
New Products
BS-ABS15 Trolley Power Station — Four Sizes, One Rolling Box
The Ruihan BS-ABS15 is a trolley-style portable power station built to be wheeled where power is needed: expedition base camps, restaurant kitchens and outdoor broadcast sites. Four grades — 2201Wh, 2500Wh, 3072Wh and 5120Wh of 25.6V LiFePO4 storage — share one rolling ABS + aluminium shell with a two-bar trolley handle, four casters, orange corner guards and a built-in compass.

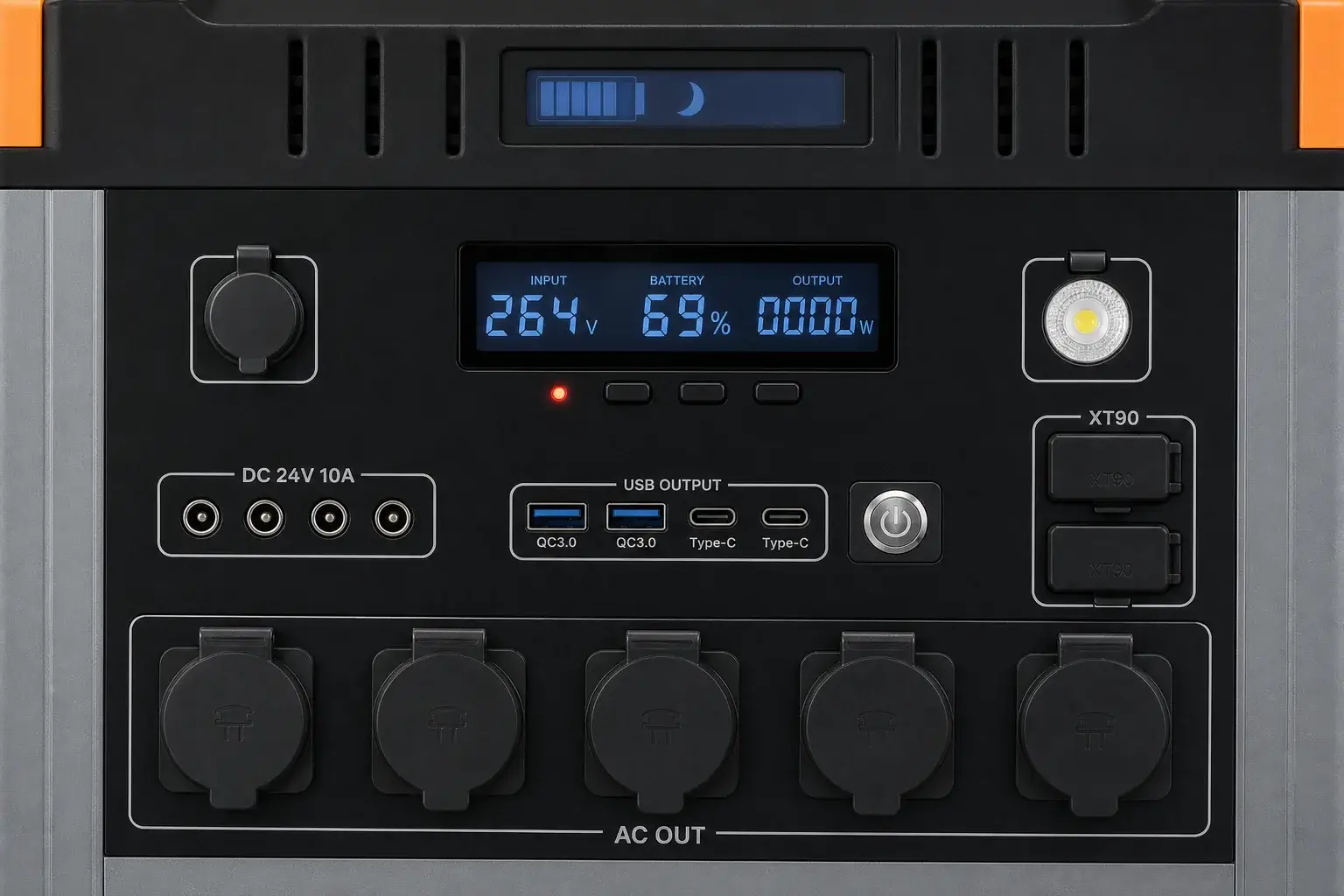

A pure sine wave inverter (2500W to 5000W by grade) feeds five spring-cover AC outlets, while DC 24V 10A ×4, dual USB-A, dual Type-C (QC3.0 + PD) and covered XT90 fast-charge sockets cover tools, phones and high-current charging. Dual USB and Type-C outputs charge at QC3.0/PD speeds.
Recharge from mains, solar or a car socket in about 6 hours (up to 8 hours from the 300W/600W solar input), with a 2-year warranty and optional 110V configuration. Price on request.
BS-ABS15 at a Glance
2201-5120Wh
Four Grades
2500-5000W
Pure Sine Wave
5×AC
Spring-Cover Outlets
24V
DC Output ×4
2yr
Warranty
Technical Specifications
| Parameter | BS-ABS15-2500W 86Ah | BS-ABS15-2500W 100Ah | BS-ABS15-3500W 120Ah | BS-ABS15-5000W 200Ah |
|---|---|---|---|---|
| Rated Power | 2500W | 2500W | 3500W | 5000W |
| Capacity | 25.6V/86Ah (2201Wh) | 25.6V/100Ah (2500Wh) | 25.6V/120Ah (3072Wh) | 25.6V/200Ah (5120Wh) |
| Battery Type | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 |
| Waveform | Pure sine wave | Pure sine wave | Pure sine wave | Pure sine wave |
| AC Outlets | 5 (spring covers) | 5 (spring covers) | 5 (spring covers) | 5 (spring covers) |
| AC Voltage | 220V (110V optional) | 220V (110V optional) | 220V (110V optional) | 220V (110V optional) |
| DC Output | 24V/10A ×4 | 24V/10A ×4 | 24V/10A ×4 | 24V/10A ×4 |
| USB Output | USB-A ×2 + Type-C ×2 (QC3.0/PD) | USB-A ×2 + Type-C ×2 (QC3.0/PD) | USB-A ×2 + Type-C ×2 (QC3.0/PD) | USB-A ×2 + Type-C ×2 (QC3.0/PD) |
| Fast-Charge Ports | XT90 ×2 | XT90 ×2 | XT90 ×2 | XT90 ×2 |
| LED Light | LED ×2 | LED ×2 | LED ×2 | LED ×2 |
| Compass | Built-in (top deck) | Built-in (top deck) | Built-in (top deck) | Built-in (top deck) |
| Charger | 29.2V/10A | 29.2V/10A | 29.2V/10A ×2 | 29.2V/20A ×2 |
| Charging Time | ~6h | ~6h | ~6h | ~6h |
| Solar Charging | 300W, ~8h | 300W, ~8h | 300W, ~8h | 600W, ~8h |
| Charging Modes | Mains / Solar / Car | Mains / Solar / Car | Mains / Solar / Car | Mains / Solar / Car |
| Mobility | Trolley + 4 casters + corner guards | Trolley + 4 casters + corner guards | Trolley + 4 casters + corner guards | Trolley + 4 casters + corner guards |
| Shell | ABS + aluminium | ABS + aluminium | ABS + aluminium | ABS + aluminium |
| Net Weight | 36.5kg | 37.5kg | 40kg | 48kg |
| Bare Size | 460 × 350 × 500mm | 460 × 350 × 500mm | 460 × 350 × 500mm | 460 × 350 × 600mm |
| Carton Size | 54 × 43.5 × 65cm | 54 × 43.5 × 65cm | 54 × 43.5 × 65cm | Larger carton (76cm class) |
| Warranty | 2 years | 2 years | 2 years | 2 years |
* Ratings per the supplier specification sheet. AC voltage is 220V by default with an optional 110V configuration — confirm when quoting. The DC 24V/10A output rating is taken from the product panel marking; solar-charge times assume the rated panel wattage in full sun. Front-panel AC silkscreen is shown as “AC OUT” in product imagery; power-grade silkscreen follows the actual model. Carton size for the 5000W grade to be confirmed by the sales team. Price on request — wholesale and OEM terms available.
Frequently Asked Questions
Which grade should I choose?
2201Wh and 2500Wh (2500W inverter) cover fridges, TVs, water heaters and tools for a day; 3072Wh (3500W) adds margin for kitchens; 5120Wh (5000W) is the heavy-duty grade for demanding sites. All four share the same shell and trolley.
Can I order 110V or 220V?
Yes. The units are configured 220V as standard with an optional 110V version — tell us your market and we will quote the matching configuration.
How do I move a 36-48kg unit?
It rolls on four swivel casters behind a two-bar trolley handle, exactly like luggage; the orange corner guards double as carry handles for lifting into vehicles.
What can I power at once?
Five AC outlets feed several appliances simultaneously within the rated power (e.g. fridge + microwave, or multiple monitors); the DC 24V and USB/Type-C outputs work independently for tools, phones and tablets.
How is it recharged?
From the mains (included 29.2V charger), from solar panels (300W-600W input) or from a car socket. A full charge takes about 6 hours on the mains charger; solar takes about 8 hours in full sun.
Can I order with my own brand?
Yes. The shell is neutral and OEM-ready; custom branding, panel printing, packaging and carton marking are available with MOQ. Price on request — contact our sales team for wholesale and OEM terms.
