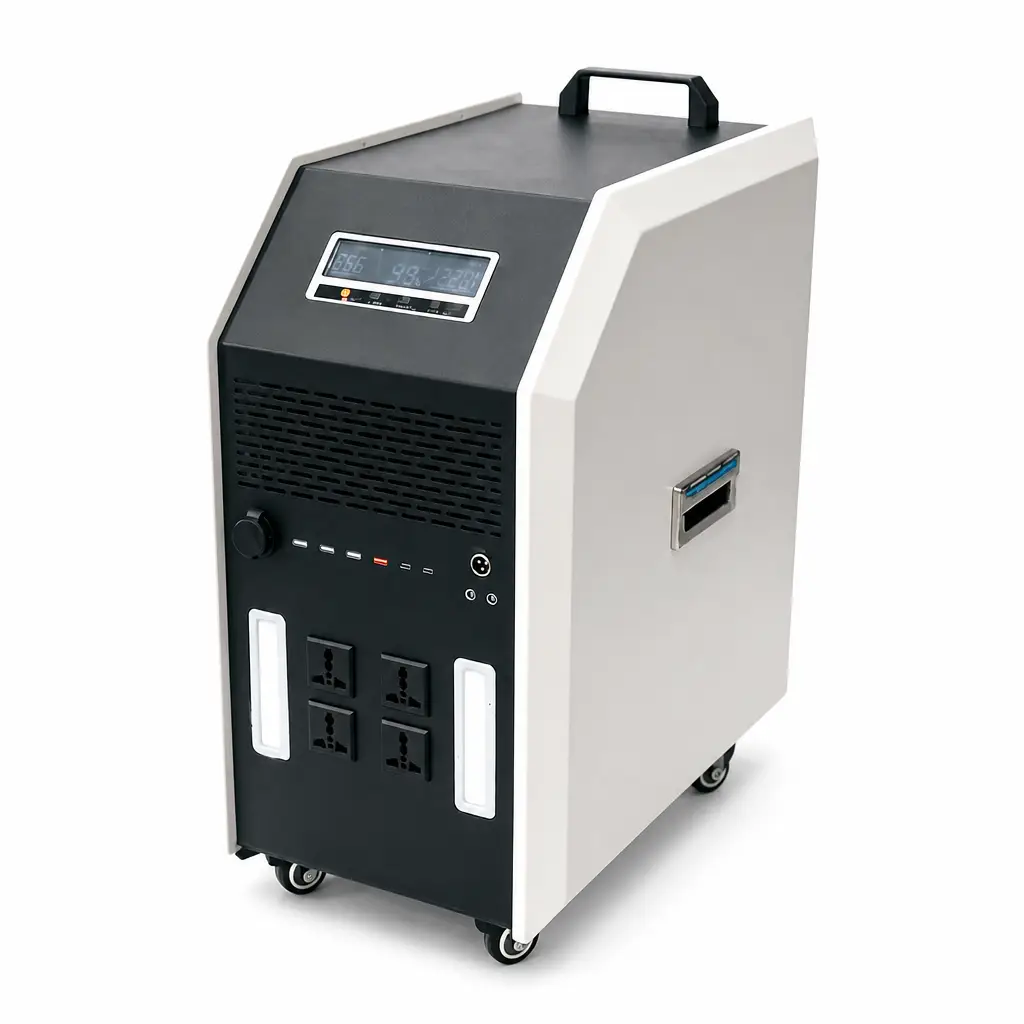

YJ905 Portable Power Station 3500W-5000W (Iron Case)
Price on request
Industrial iron-case solar generator on wheels — 3500W to 5000W pure sine wave AC output, 3072-6144Wh LiFePO4, 3,500+ cycles, 4 AC sockets.
3500W-5000W AC | 3072-6144Wh LiFePO4 | Pure Sine Wave | 4× AC Sockets | 3,500+ Cycles | On Wheels
This system is configured per project. Send us your requirements for a tailoredproposal within one business day.
Supplier’s customization ability verified
- Minor customization
- Drawing-based customization
- Sample-based customization
- Full customization
Guangdong Ruihan Electronics Technology Co., Ltd.
Guangzhou, CN ·3yrs · Multispecialty Supplier
4.9/5(14)
Store rating
≤3h
Response Time
≥ 95%
On-time dispatch rate
9%
Reorder rate
- Minor customization
- Drawing - based customization
Categories
How Can We Help You
You can contact us any way that isconvenient for you. We areavailable 24/7 via email ortelephone.
New Products
Two Power Ratings, One Rugged Platform

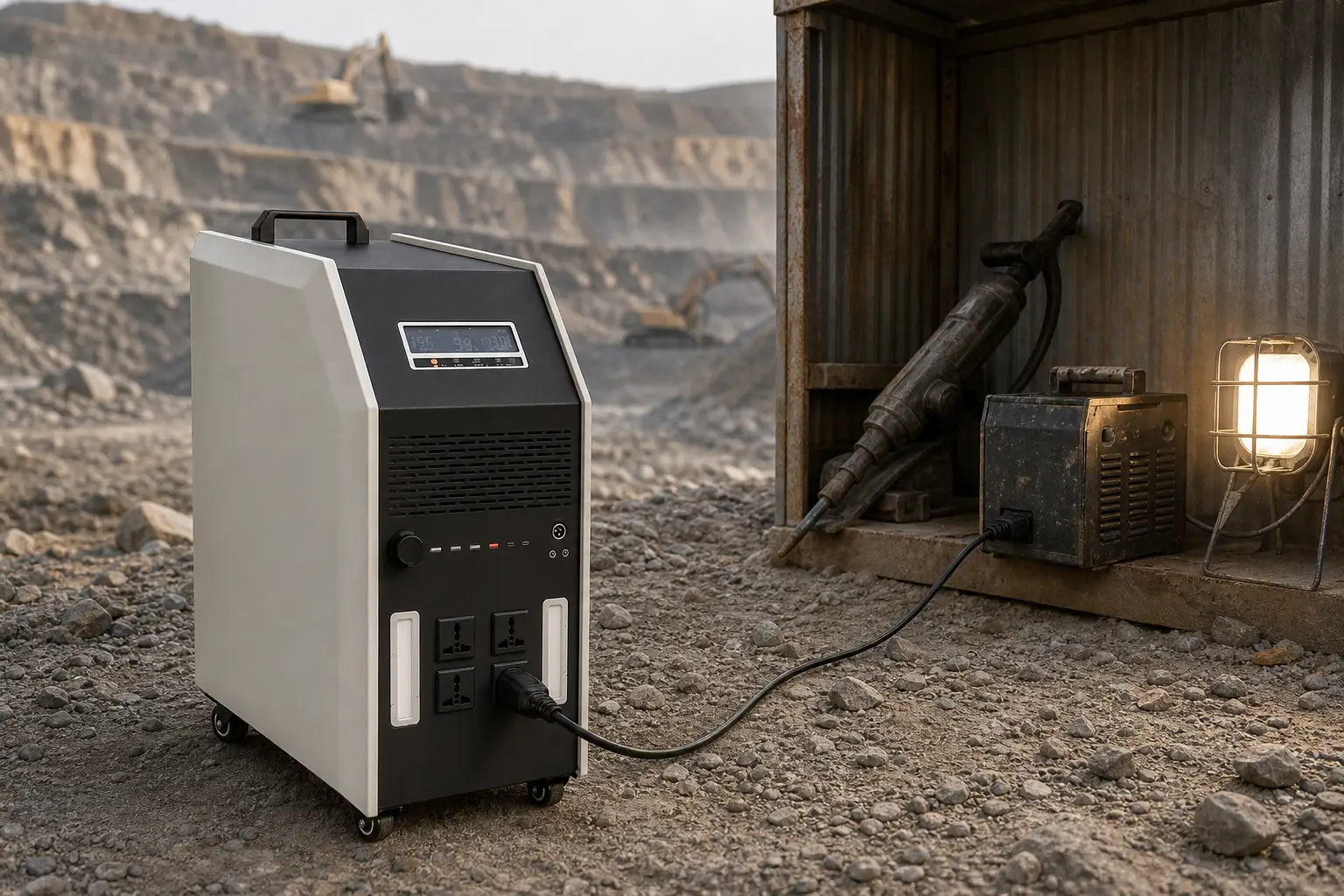

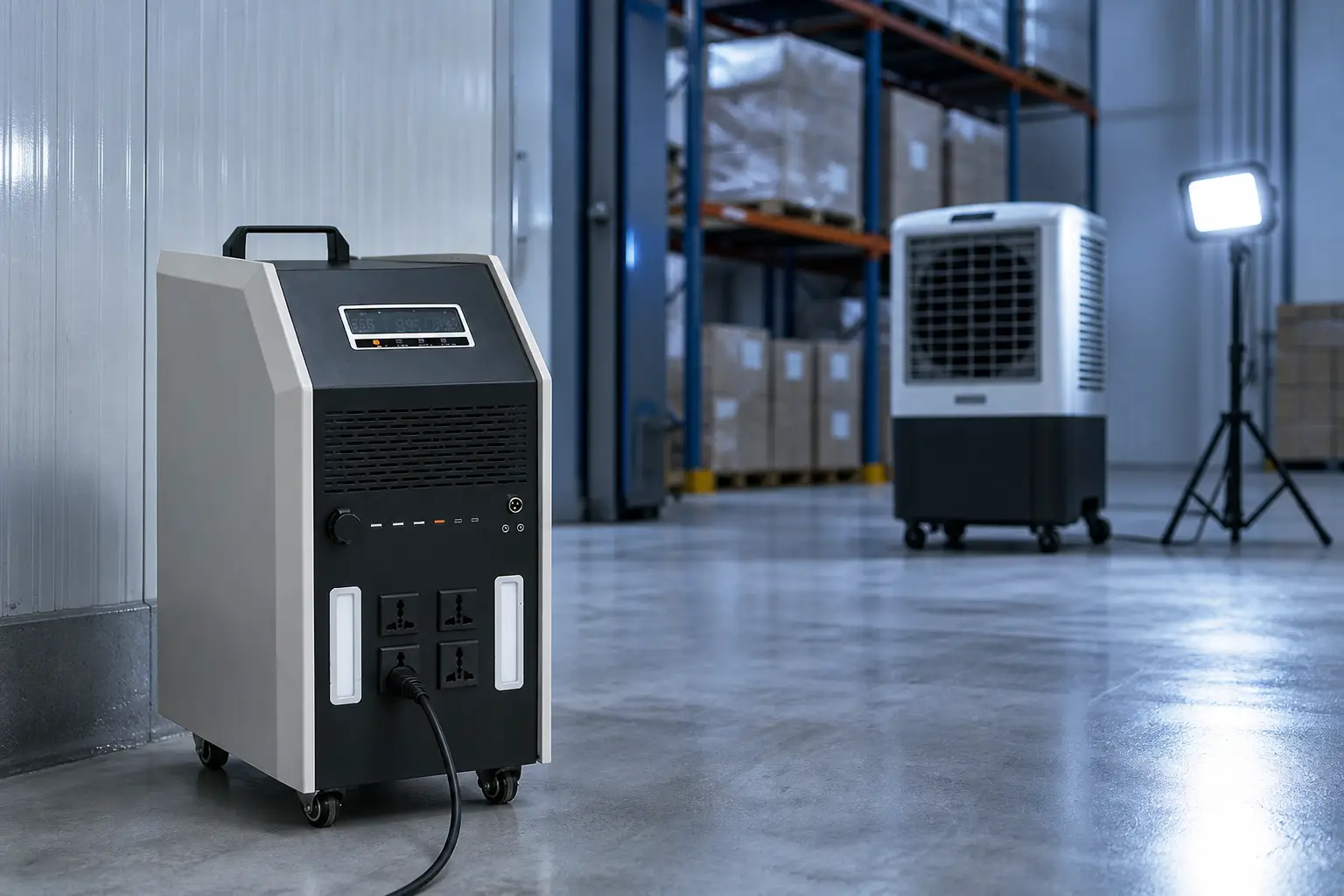

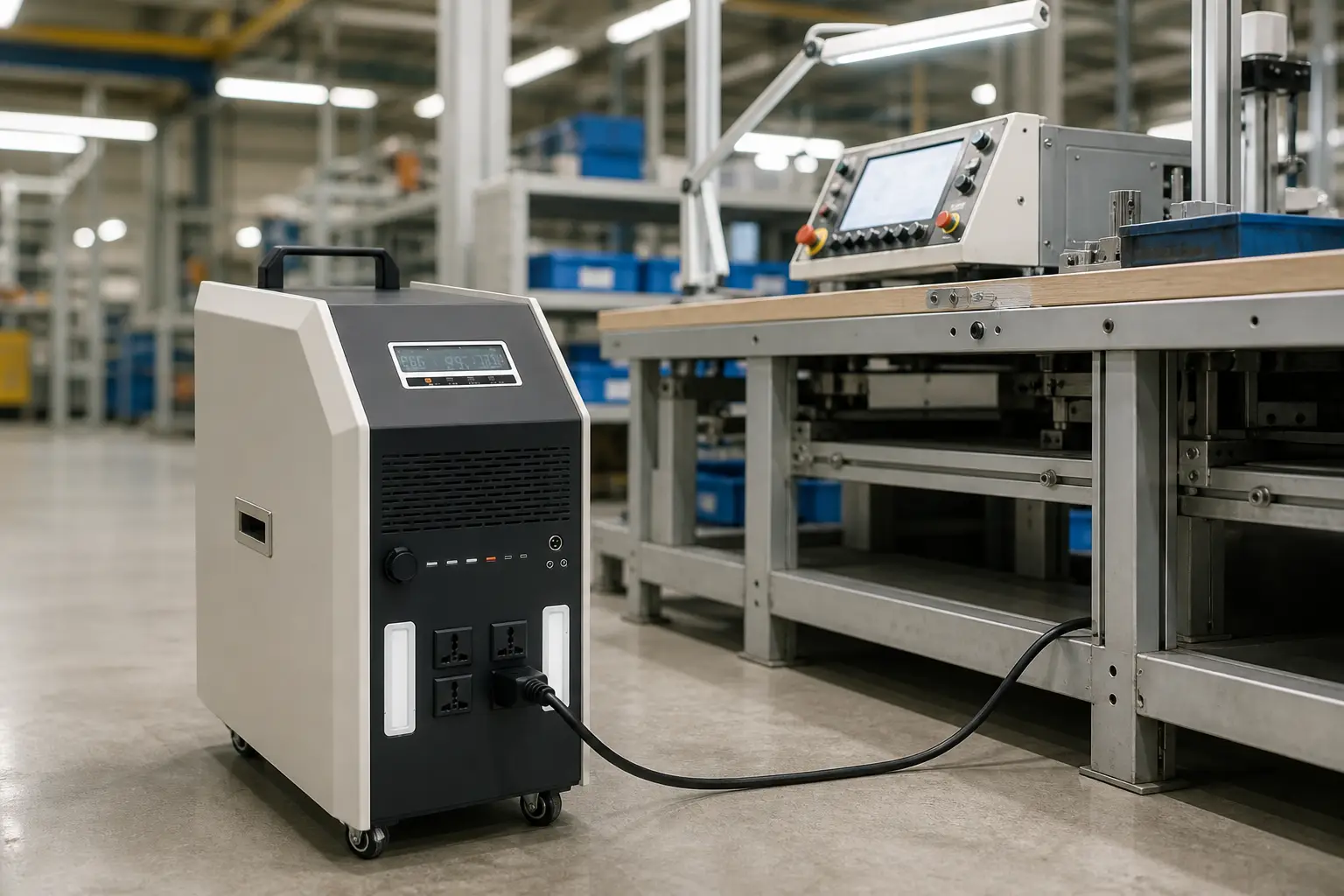

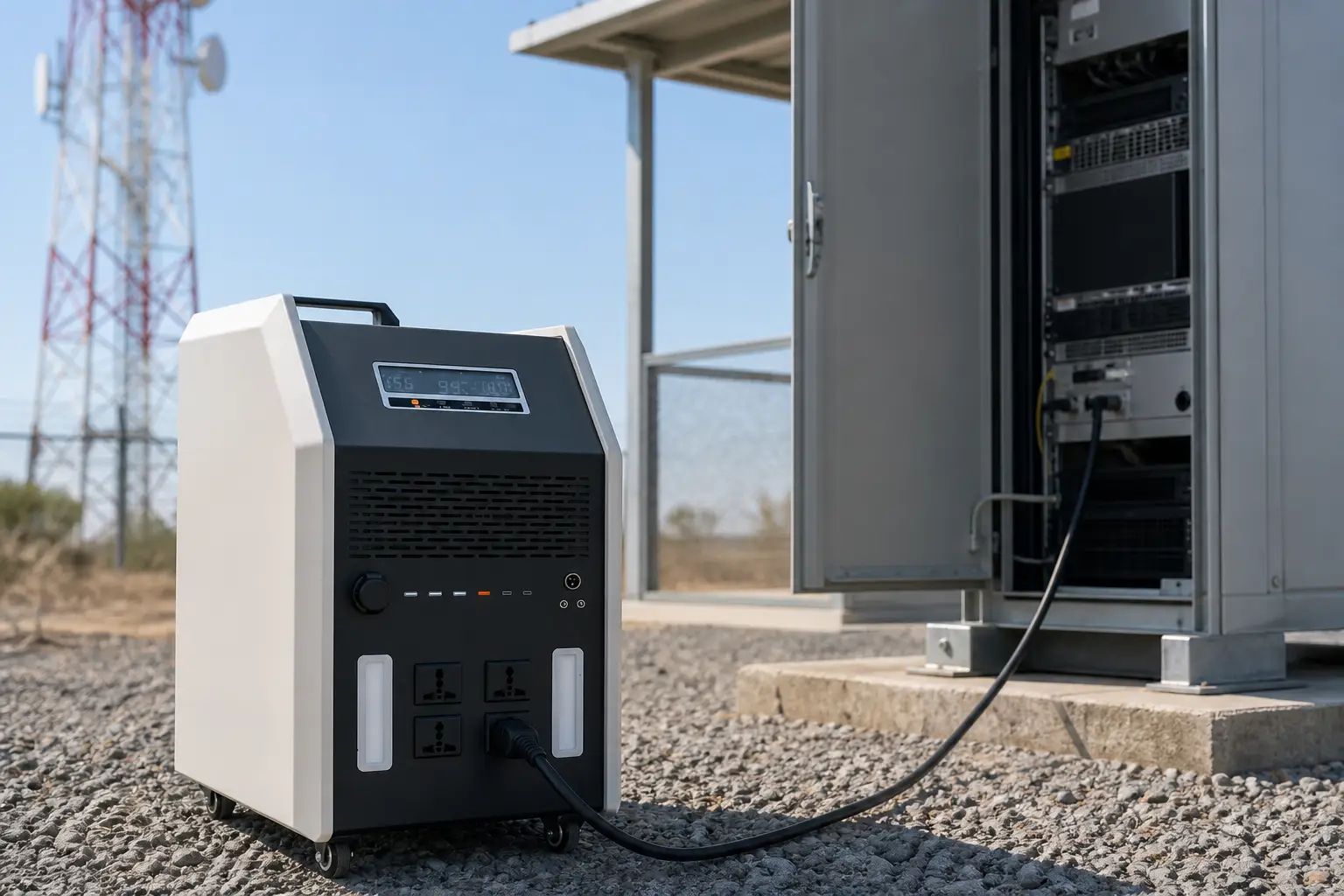

The YJ905 is an industrial mobile solar energy storage system built into a rugged iron case on wheels, available in two ratings — 3500W and 5000W — with 3072Wh to 6144Wh LiFePO4 batteries. Both versions deliver clean pure sine wave AC output (up to 10000W peak), making them dependable power sources for telecom sites, off-grid communities, cold storage, factories, mining and data center backup.

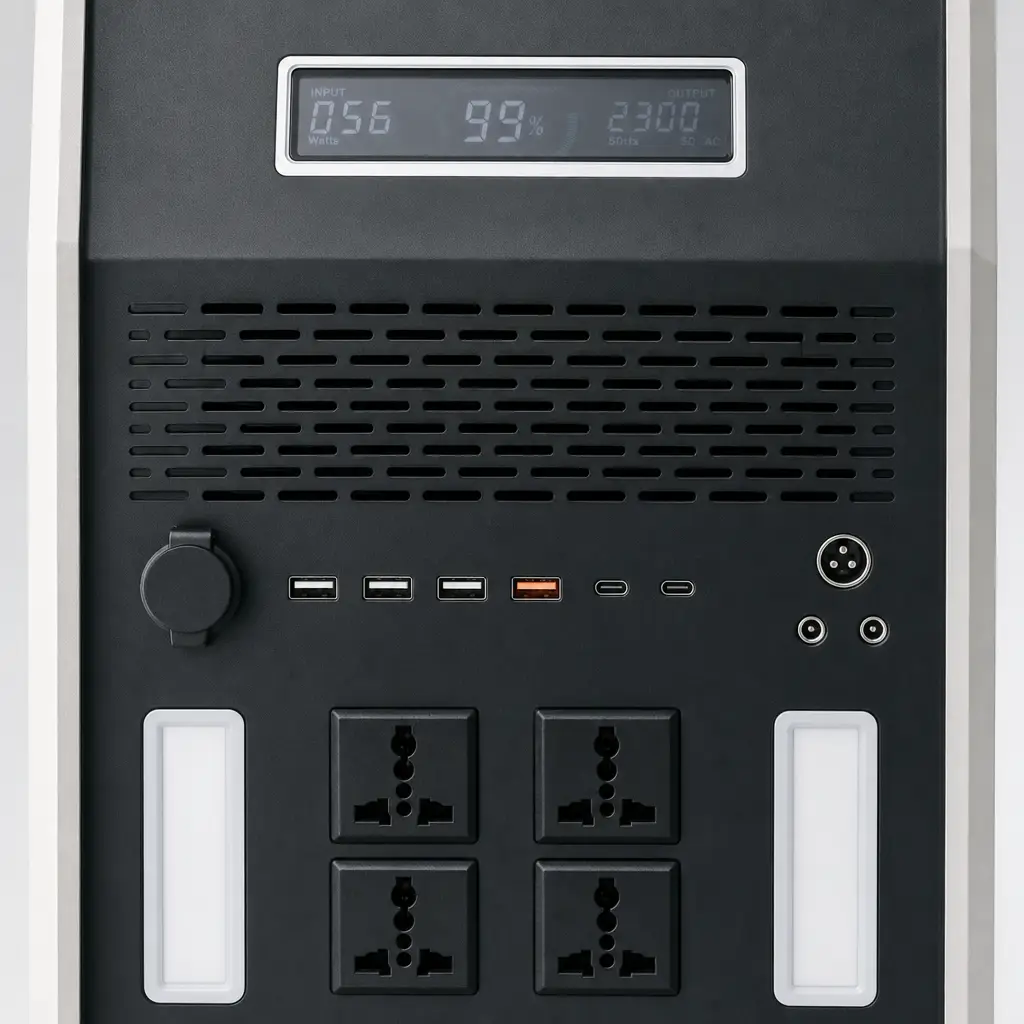

Inside every YJ905 is a LiFePO4 battery rated for more than 3,500 charge cycles. The 3500W version uses a 25.6V 3072Wh pack; the 5000W version uses a 51.2V 6144Wh pack. Outputs include four AC sockets, four USB ports, two Type-C ports and DC outputs, plus vertical LED light bars for workspace lighting. Charging is dual-source: wall AC in about 6-7 hours, or solar in about 7-8 hours. Four caster wheels and dual handles make the unit easy to move on site.
Built for global partners: the YJ905 ships with an AC charger (EU plug), user manual and pearl-cotton packaging. Optional solar panels: 34V 480W for the 3500W model, 41V 550W ×2 for the 5000W model. Ruihan supports OEM/ODM customization — logo, color, socket standards, packaging and firmware — under strict quality control. Send us your target market and MOQ for a tailored proposal within one business day.
Key Features
TwoPower Ratings
3500W (7000W peak) or 5000W (10000W peak) — pick the capacity your site demands.
PureSine Wave Output
220V clean sine wave — safe for telecom equipment, servers, pumps and sensitive electronics.
6144WhMax LiFePO4
25.6V 3072Wh or 51.2V 6144Wh packs — long runtime with 3,500+ cycle life.
4 ACFour AC Sockets
Four universal AC220V sockets in a 2×2 grid — run multiple heavy loads simultaneously.
MobileOn Wheels
Four caster wheels and dual handles — move heavy power exactly where you need it.
SolarDual Solar Input
Two 18V solar/AC input ports — 34V 480W (3500W model) or 41V 550W ×2 (5000W model) panels.
At a Glance
3500-5000W
AC Output
10,000W
Max Peak
6144Wh
Max Battery
3,500+
Cycle Life
6-7h
Full Charge
Applications
01
02Technical Specifications
| Specification | YJ905-3500W | YJ905-5000W |
|---|---|---|
| Case | Iron case version · on wheels | |
| AC Output Power | 3500W (peak 7000W) · AC220V | 5000W (peak 10000W) · AC220V |
| Inverter | 220V · 3500W pure sine wave | 220V · 5000W pure sine wave |
| Battery | LiFePO4 · 25.6V · 3072Wh (120Ah) | LiFePO4 · 51.2V · 6144Wh (120Ah) |
| Cycle Life | More than 3,500 times | |
| AC Sockets | 4 × AC220V (2×2 grid) | |
| USB Output | 4 × USB | |
| Type-C Output | 2 × Type-C | |
| Charging Parameters | DC12-24V | |
| Charging Ports | 18V solar / AC · 2 ports | |
| Charging Time | Utility 6-7h · Solar panel 7-8h | |
| Optional Solar Panel | 34V 480W | 41V 550W × 2 |
| Packaging | Pearl cotton packaging | |
Frequently Asked Questions
How do I choose between the 3500W and 5000W models?
Match the inverter to your heaviest load: 3500W covers telecom cabinets, pumps and factory equipment; 5000W (10000W peak) handles larger industrial and multi-device loads. Battery capacity (3072Wh vs 6144Wh) determines runtime.
What can these units run?
Telecom equipment, servers, pumps, work lights, tools, cold storage and heavy appliances. Pure sine wave output is safe for sensitive electronics.
How long does it take to charge?
About 6-7 hours from the wall AC charger (included), and about 7-8 hours from solar panels, depending on sunlight.
Can I charge it with solar panels?
Yes. Two 18V solar/AC input ports accept the 34V 480W panel (3500W model) or 41V 550W ×2 panels (5000W model).
How many cycles does the battery last?
Both models use LiFePO4 batteries rated for more than 3,500 charge cycles — years of reliable industrial use.
Do you support OEM/ODM?
Yes. Logo, color, packaging, socket standard and firmware customization are available. Contact us with your target market and MOQ for a tailored quote.
