P-6 36kWh Stackable Home Energy Storage
Price on request
The P-6 stacks 36kWh of LiFePO4 energy — one control unit on top of four 9000Wh battery modules — behind a 5500W bidirectional inverter. With a 5000W MPPT solar controller and 2500W fast charging, it turns rooftop PV into round-the-clock whole-home power for European households.
This system is configured per project. Send us your requirements for a tailoredproposal within one business day.
Supplier’s customization ability verified
- Minor customization
- Drawing-based customization
- Sample-based customization
- Full customization
Guangdong Ruihan Electronics Technology Co., Ltd.
Guangzhou, CN ·3yrs · Multispecialty Supplier
4.9/5(14)
Store rating
≤3h
Response Time
≥ 95%
On-time dispatch rate
9%
Reorder rate
- Minor customization
- Drawing - based customization
Categories
How Can We Help You
You can contact us any way that isconvenient for you. We areavailable 24/7 via email ortelephone.
New Products
P-6 — Stacked for Whole-Home Solar Independence
The P-6 is a stackable home energy storage system built around one control unit and four 9000Wh LiFePO4 battery modules — 36kWh of usable storage in a single 750 x 490 x 1035mm footprint. Its 5500W bidirectional inverter powers the essentials of a European home: fridge, freezer, lighting, heating circulation pumps and home office loads, day and night.
Paired with rooftop PV, the 5000W MPPT controller (60-130V input) stores the sun’s daytime surplus and releases it after dark — raising self-consumption and keeping the household running through grid outages. A 2500W fast charger restores the full stack from the grid in about 5.5 hours when solar is not available.

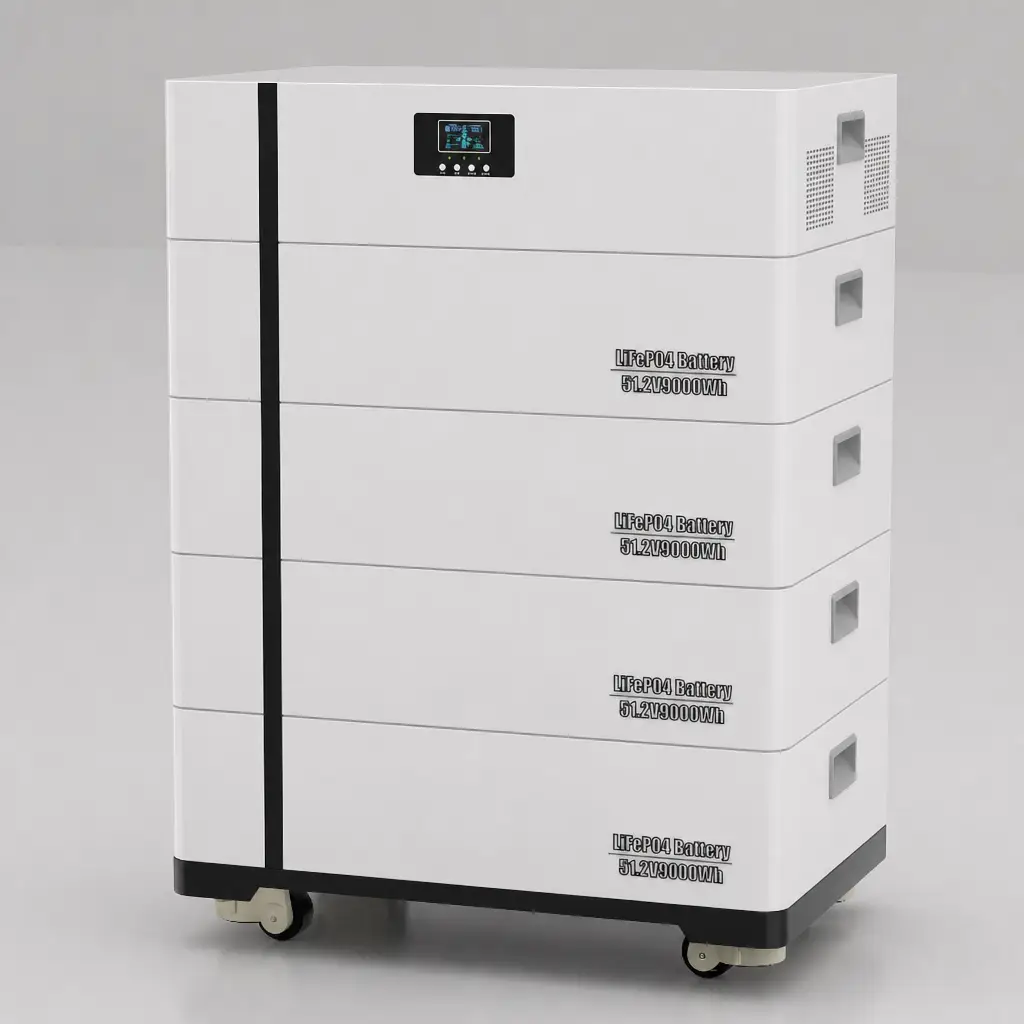

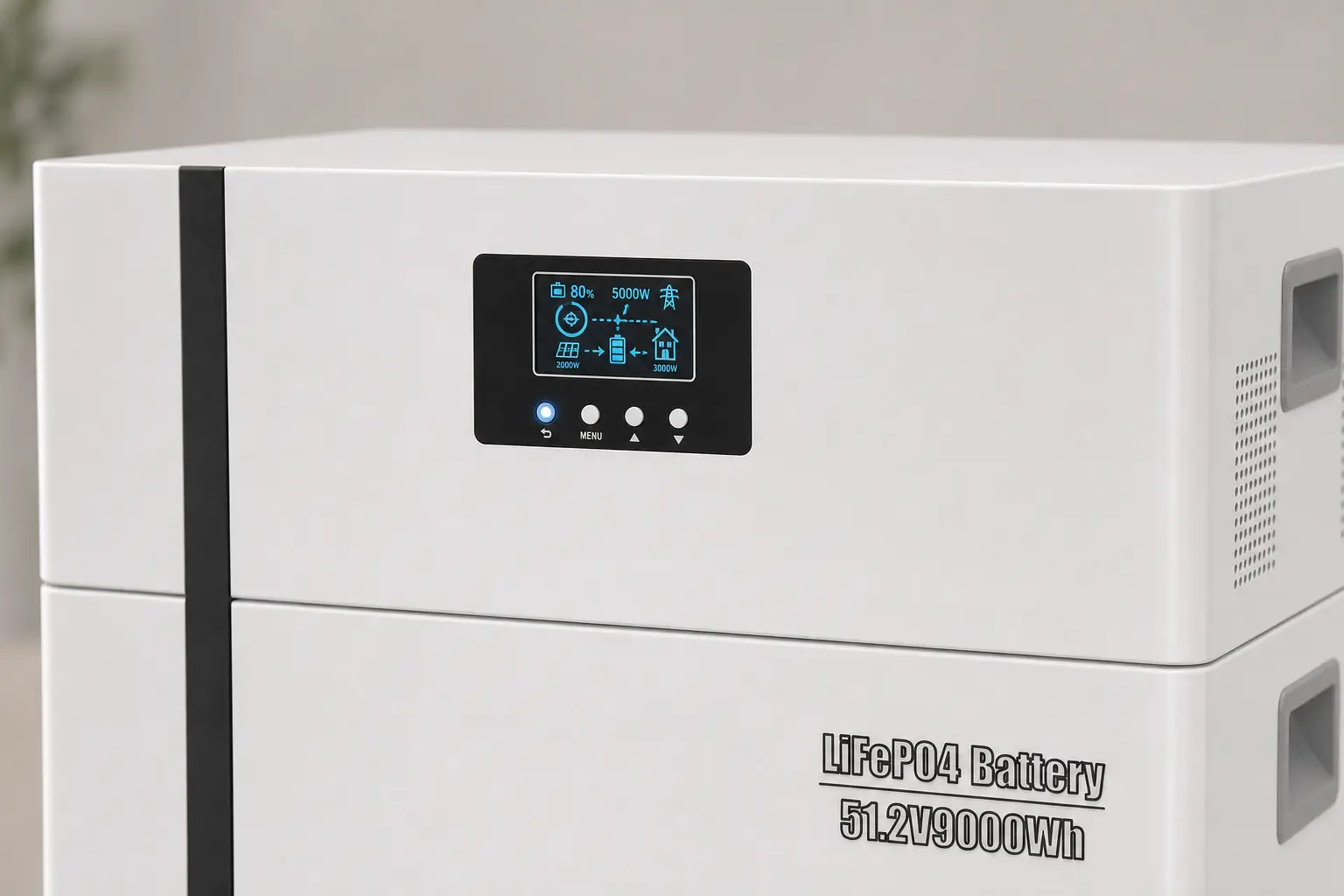

Each white module carries LiFePO4 chemistry at 51.2V / 9000Wh with the battery type printed on the front, and the whole stack rolls on a black base with four swivel casters for final positioning. The smart LCD on the control unit shows charge level, power flow and system status at a glance.
P-6 At a Glance
36kWh
LiFePO4 Capacity
5500W
Bidirectional Output
5000W
MPPT Solar Input
5.5h
Full Charge Time
4+1
Modules (4x9kWh)
Technical Specifications
| Parameter | P-6 |
|---|---|
| System Type | All-in-one stacked energy storage (1 control unit + 4 battery modules) |
| Rated Power | 5500W (nominal AC 6.2kW*) |
| Battery Chemistry | LiFePO4 (LFP) |
| Battery Capacity | 51.2V 9000Wh x 4 = 36kWh |
| Inverter | Bidirectional inverter |
| Charging | Fast charging 2500W, full charge ~5.5h |
| MPPT Solar Input | 60V-130V, 5000W |
| Suggested PV Panels | 5000W |
| Operating Temperature | Charge 0-55°C / Discharge -20~60°C |
| Product Size | 750 x 490 x 1035mm |
| Weight | 200kg |
* Supplier sheet lists both “Rated 5500W” and “Nominal AC 6.2kW” — to be unified once the final datasheet is confirmed. Cycle life, IP rating and grid certifications not provided by the supplier sheet and intentionally omitted.
Frequently Asked Questions
What can the P-6 run during an outage?
With 5500W of output and 36kWh of storage it covers the essentials of a European household through the night — fridge, freezer, lighting, heating circulation pumps and home office loads.
How does it charge from solar?
Connect rooftop PV to the MPPT input (60-130V, up to 5000W — suggested PV size 5000W). The controller stores daytime surplus for evening and night use.
How long is a full charge?
The 2500W fast charger restores the 36kWh stack from the grid in about 5.5 hours; with sufficient solar, PV tops it up during the day.
Where should it be installed?

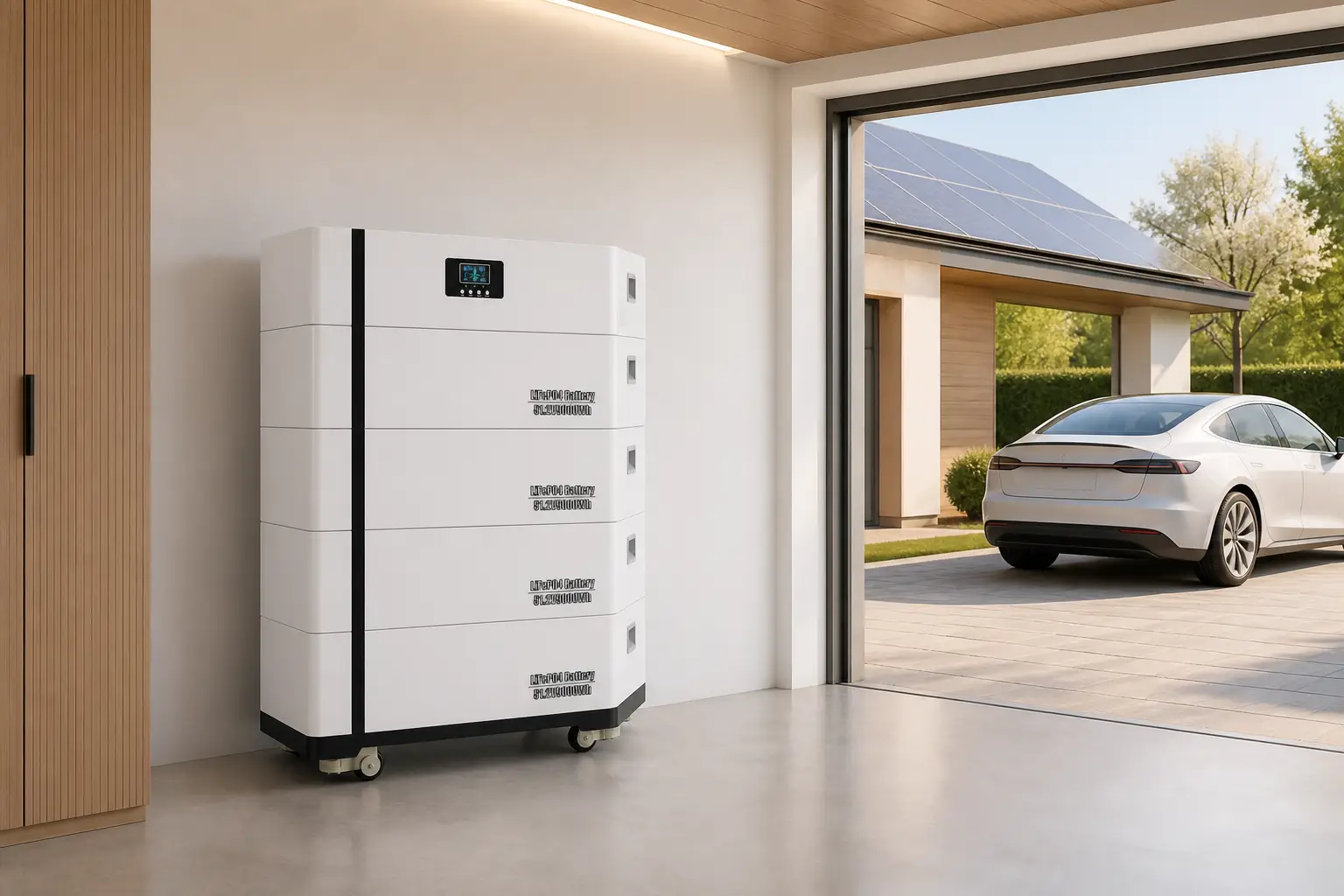

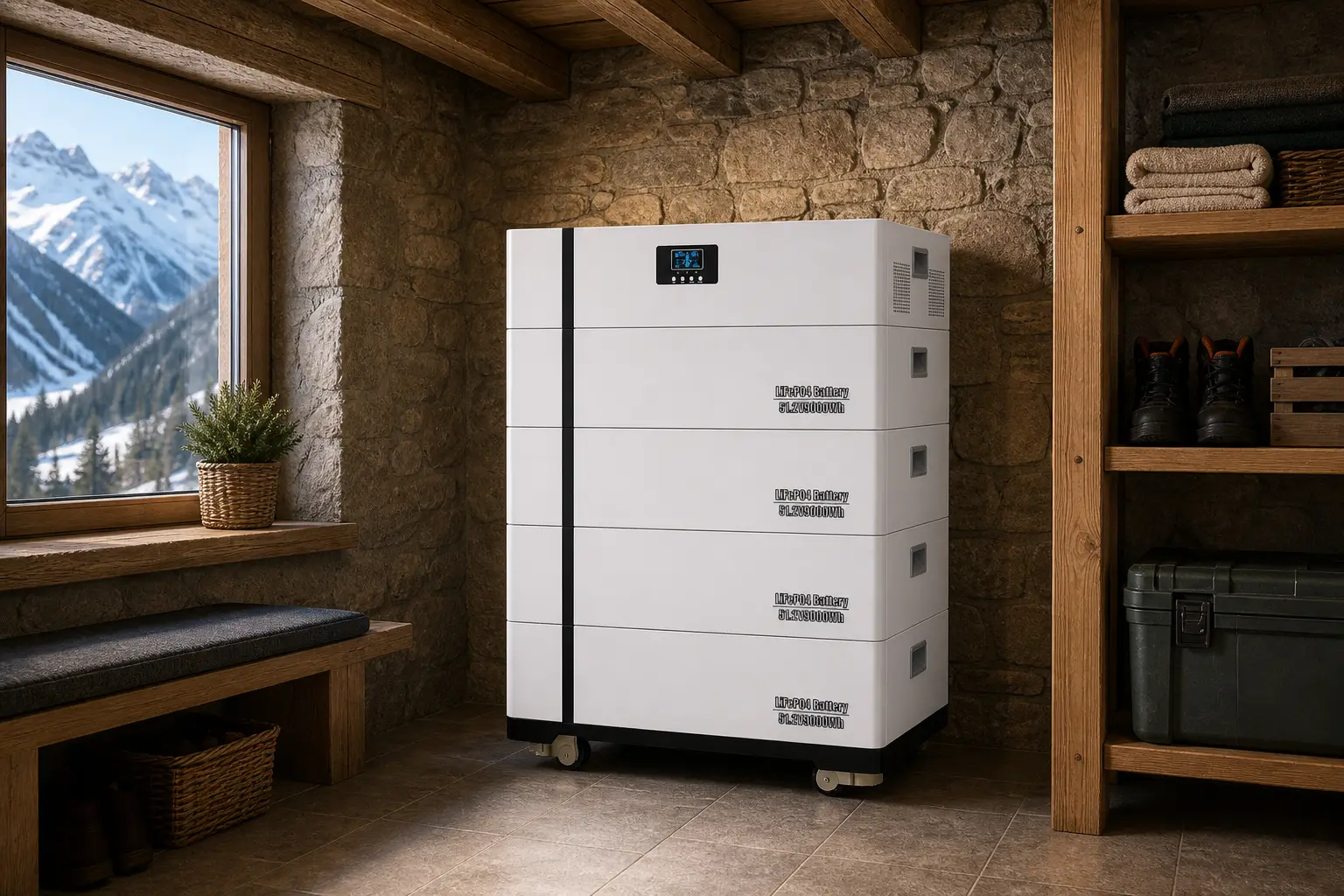

A dry indoor space — utility room, basement or garage. Operating range is 0-55°C while charging and -20~60°C while discharging. Installation by a qualified electrician is recommended.
Who is the P-6 designed for?
European homeowners with rooftop PV who want higher self-consumption, whole-home backup through outages, and a compact stacked system — plus small properties such as guesthouses and rural businesses.
