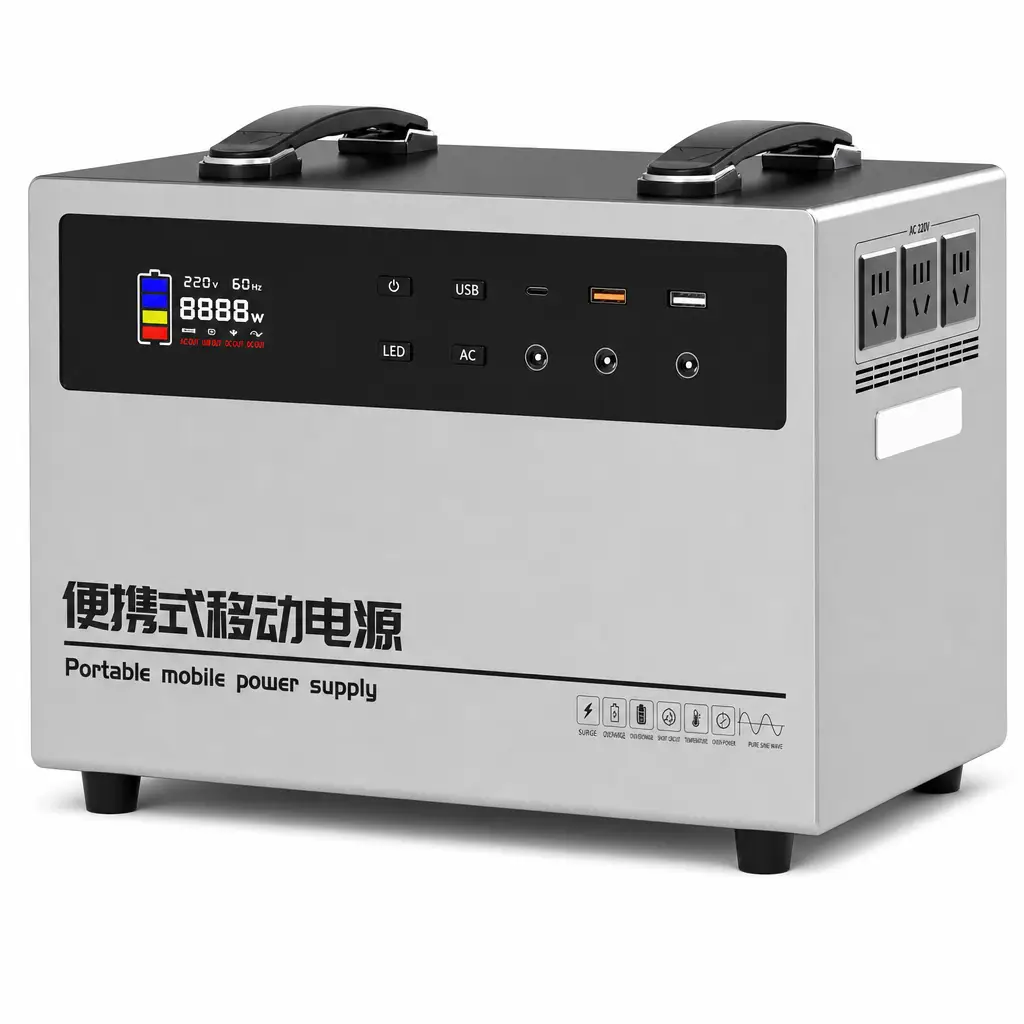

L-10T / L-20T Portable Power Station
Price on request
The Ruihan L Series runs 1200W or 2000W of pure sine wave AC through three 220V side-panel outlets, with QC3.0, Type-C 30W, USB-A and three DC5521 ports. Four grades — L-10T-A (1000Wh), L-10T-B (2000Wh), L-20T-A (2000Wh) and L-20T-B (3000Wh) — charge from the XT90 charger or solar through the 18-80V MPPT input. Dependable power for remote work, market stalls, shops and field vans.
This system is configured per project. Send us your requirements for a tailoredproposal within one business day.
Supplier’s customization ability verified
- Minor customization
- Drawing-based customization
- Sample-based customization
- Full customization
Guangdong Ruihan Electronics Technology Co., Ltd.
Guangzhou, CN ·3yrs · Multispecialty Supplier
4.9/5(14)
Store rating
≤3h
Response Time
≥ 95%
On-time dispatch rate
9%
Reorder rate
- Minor customization
- Drawing - based customization
Categories
How Can We Help You
You can contact us any way that isconvenient for you. We areavailable 24/7 via email ortelephone.
New Products
L Series — 1200W & 2000W of Clean Power, Four Grades, One Family

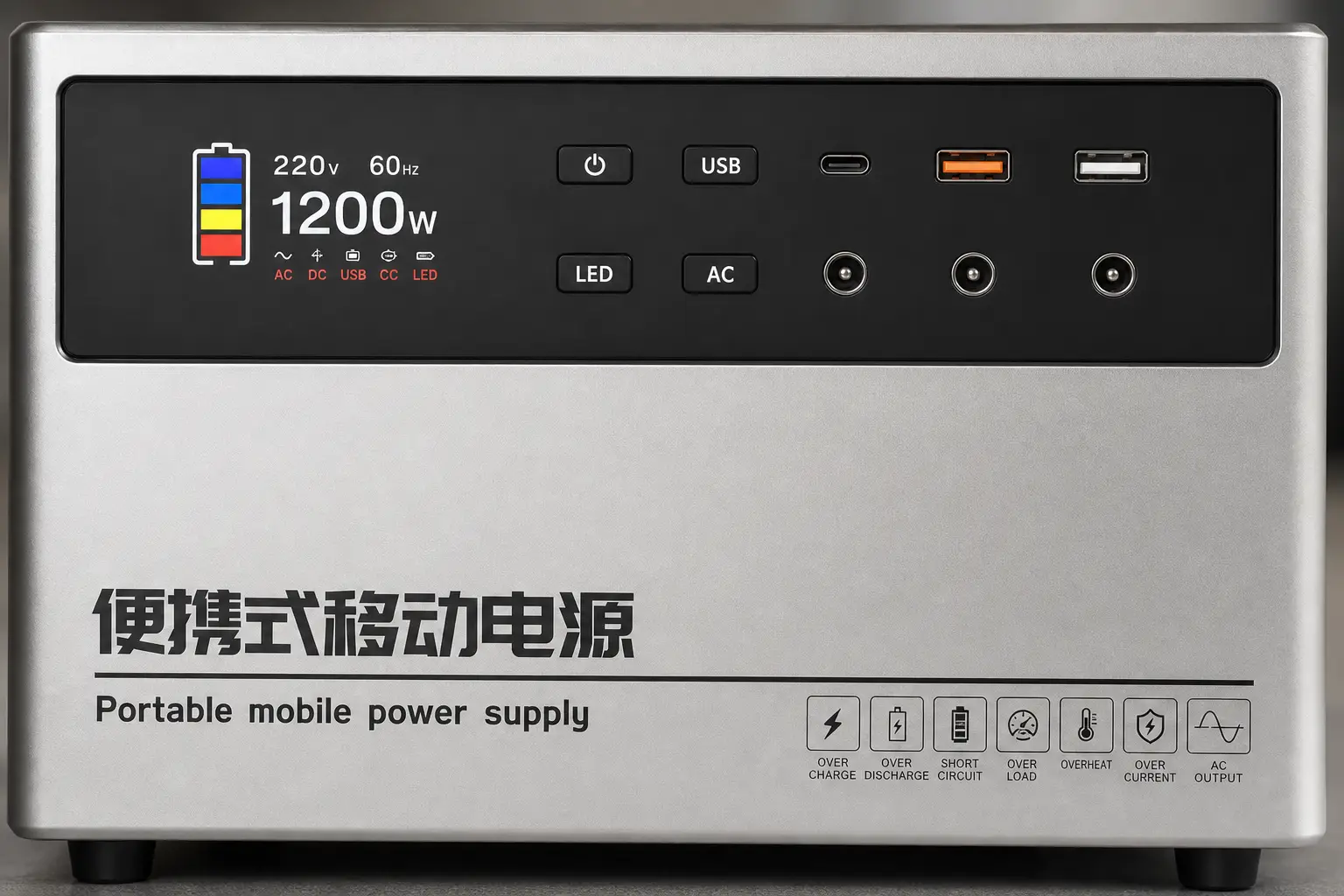

The Ruihan L Series is a family of portable power stations that share one design language and one set of ports. Every L Series unit delivers pure sine wave AC through three 220V outlets on the side panel, backed by QC3.0 27W, a 30W Type-C port, USB-A, three DC5521 outputs, a 12V car socket and a 7W LED light.

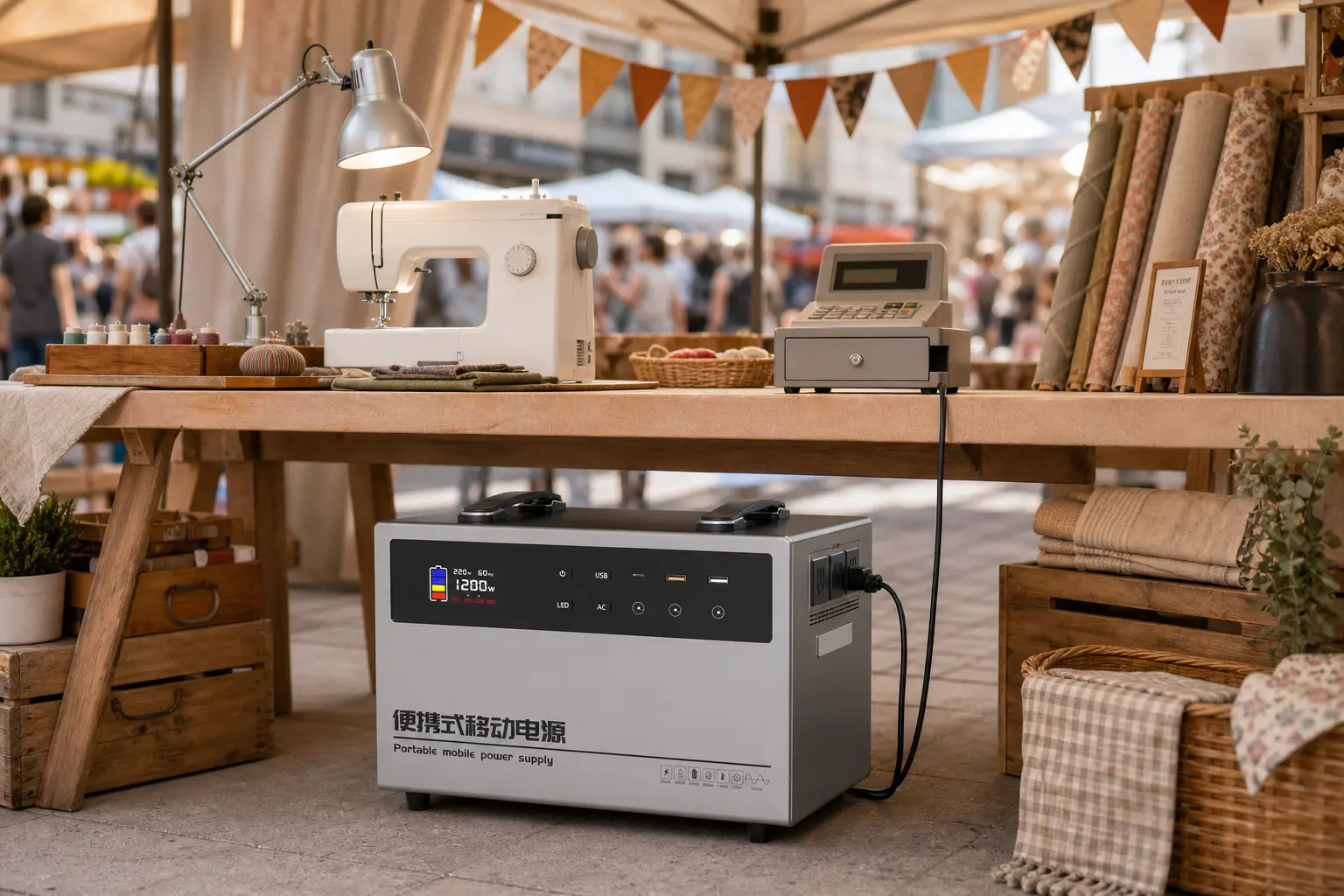

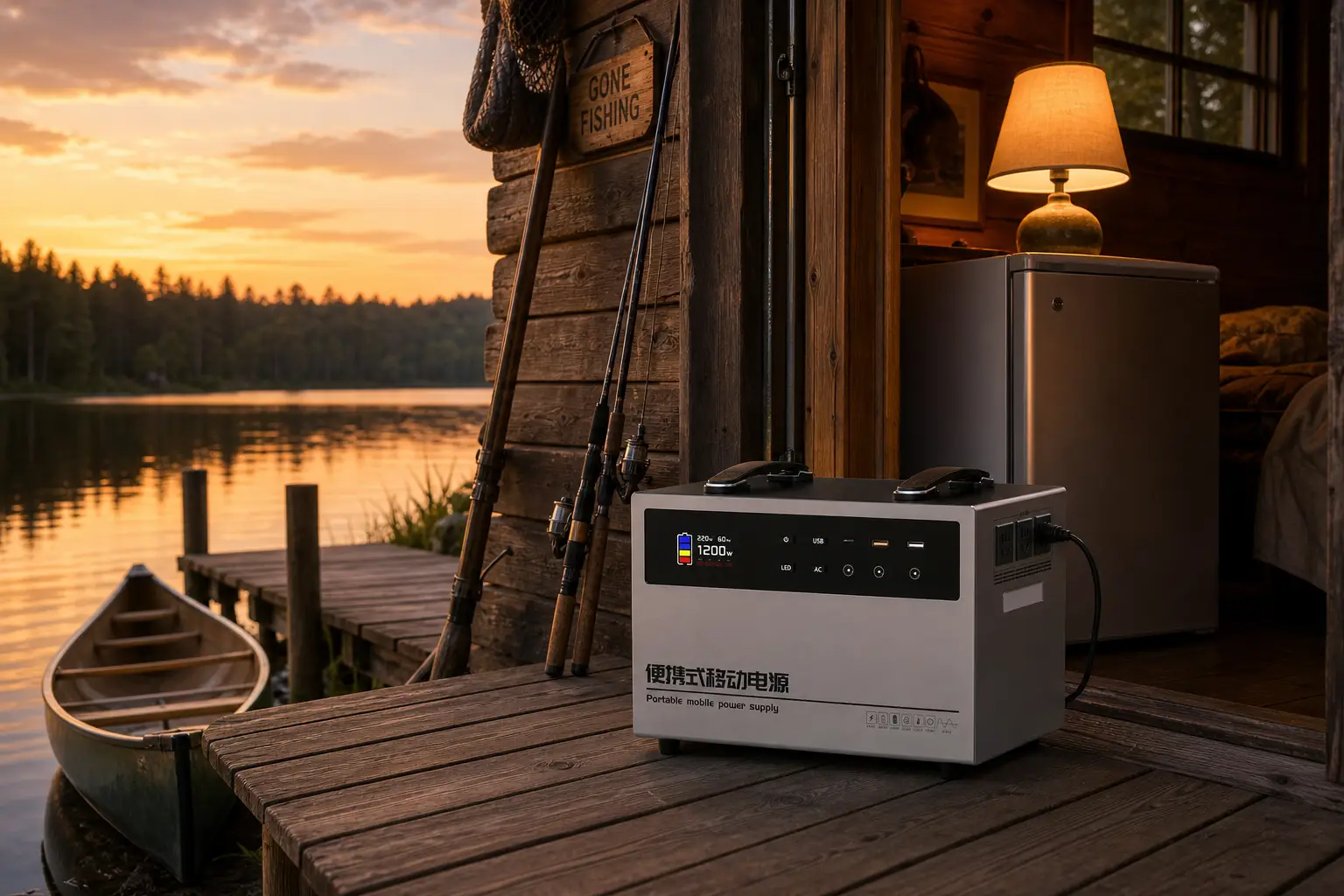

Four capacity grades cover everything from a desk to a shop counter: the L-10T-A (1000Wh) and L-10T-B (2000Wh) run 1200W platforms for remote work, market stalls and cabin stays; the L-20T-A (2000Wh) and L-20T-B (3000Wh) run 2000W platforms for shop blackouts, event stalls and field-service vans. Every version recharges from the wall through its included XT90 charger (14.6V/10A to 14.6V/30A by grade) in roughly 5-7 hours, or from solar panels through the 18-80V MPPT input (15A to 30A).
Weights run from 18.2kg to 22kg with a carry handle on top, so the same unit moves from home to stall to van. Choose the grade that matches the job: from a laptop and a lamp to a register, a chilled fridge and a PA speaker.
L Series At a Glance
1200-2000W
Pure Sine Wave
1-3kWh
Four Capacity Grades
3× AC
220V 50Hz Outlets
18-80V
MPPT Solar Input
18.2-22kg
Carryable Family

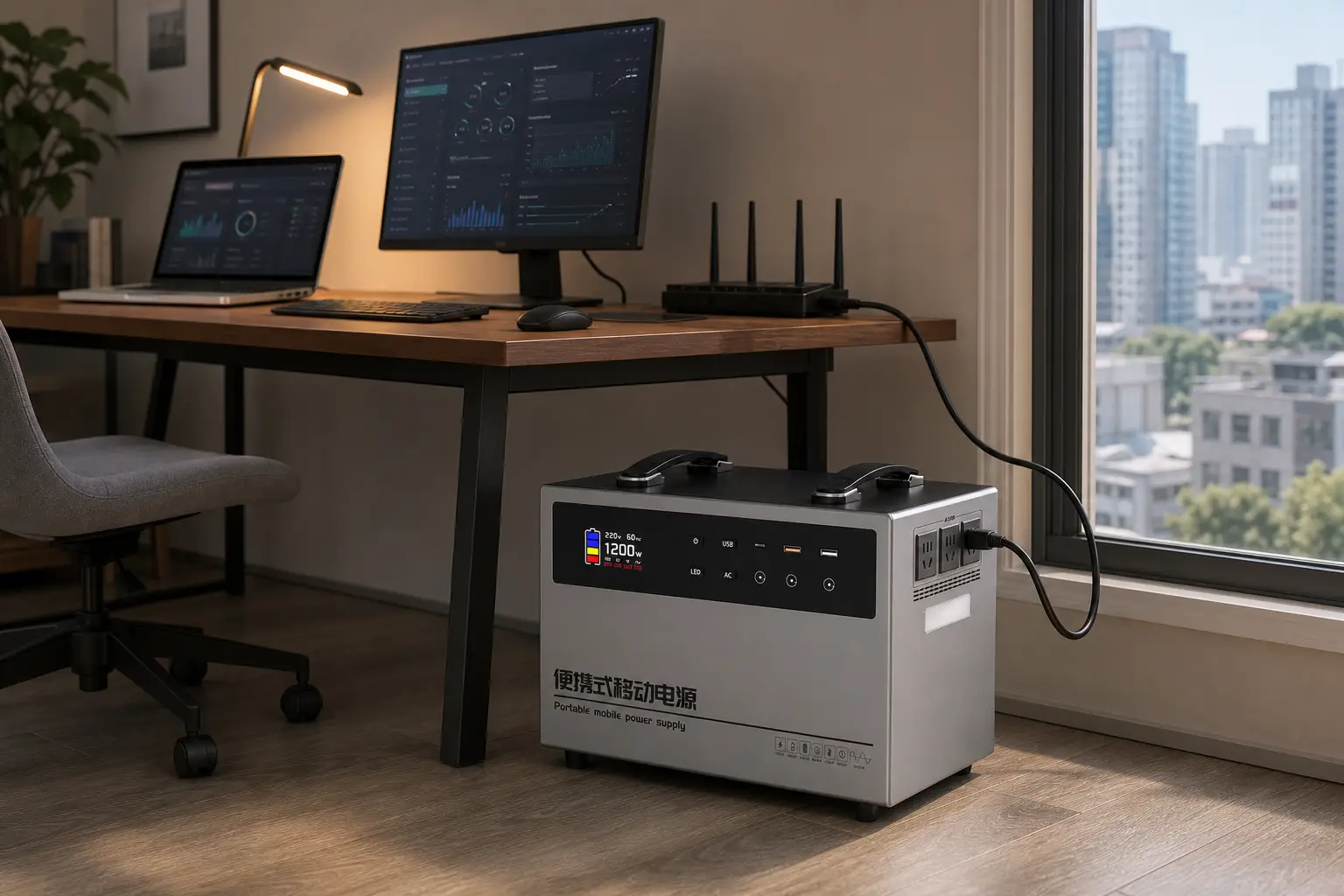

The L-10T (1200W) in Daily Use
Technical Specifications
| Parameter | L-10T-A | L-10T-B | L-20T-A | L-20T-B |
|---|---|---|---|---|
| Rated Power | 1200W | 1200W | 2000W | 2000W |
| Waveform | Pure sine wave | Pure sine wave | Pure sine wave | Pure sine wave |
| Capacity | 1000Wh* | 2000Wh* | 2000Wh* | 3000Wh* |
| AC Output | 3 x 220V outlets (side panel) | 3 x 220V outlets (side panel) | 3 x 220V outlets (side panel) | 3 x 220V outlets (side panel) |
| USB Output | USB-A 5V/2A + QC3.0 27W + Type-C 30W | USB-A 5V/2A + QC3.0 27W + Type-C 30W | USB-A 5V/2A + QC3.0 27W + Type-C 30W | USB-A 5V/2A + QC3.0 27W + Type-C 30W |
| DC Output | DC5521 12V/5A x3 + Lighter 12V/8A | DC5521 12V/5A x3 + Lighter 12V/8A | DC5521 12V/5A x3 + Lighter 12V/8A | DC5521 12V/5A x3 + Lighter 12V/8A |
| LED Light | 7W | 7W | 7W | 7W |
| Charger | 14.6V/10A XT90 (included) | 14.6V/20A XT90 (included) | 14.6V/20A XT90 (included) | 14.6V/30A XT90 (included) |
| Charging Time | ~7h | ~5h | ~7h | ~5h |
| MPPT Solar Input | 18V-80V, 15A | 18V-80V, 30A | 18V-80V, 30A | 18V-80V, 30A |
| Suggested PV Panels | 300W | 550W | 550W | 800W |
| Product Size | 335 x 220 x 230mm | 335 x 220 x 230mm | 335 x 220 x 230mm | 335 x 220 x 230mm |
| Weight | 18.2kg | 18.5kg | 19kg | 22kg |
* Battery chemistry not stated in the supplier sheet — confirm before finalising. Product size per supplier sheet (335 or 315mm — confirm). All versions ship with charger and manual. Charging times per supplier sheet (L-10T-A ~7h / L-10T-B ~5h / L-20T-A ~7h / L-20T-B ~5h).
Frequently Asked Questions
Which L Series grade should I choose?
Match power to the load and capacity to the runtime: L-10T-A (1200W, 1000Wh) for a workday or market day; L-10T-B (1200W, 2000Wh) for longer sessions and cabin weekends; L-20T-A (2000W, 2000Wh) for a full trading day or shop blackout; L-20T-B (2000W, 3000Wh) for long events and multi-hour outages.
What can each class run?
Both classes run pure sine wave AC safe for sensitive electronics. The 1200W L-10T runs laptops, monitors, sewing machines, routers and small fridges; the 2000W L-20T adds registers, chilled fridges, coffee machines, PA speakers and power tools.
Can I use it with 220V devices?
Yes — every L Series unit provides three 220V 50Hz AC outlets, matching standard mains equipment across most regions. For 110V regions, please confirm your appliance compatibility with the sales team.
How do I recharge it off-grid?
Connect solar panels to the 18-80V MPPT input — 15A (L-10T-A) or 30A on the other three grades, with suggested PV from 300W to 800W. Wall charging via the included XT90 charger (10A to 30A by grade) takes roughly 5-7 hours.
Who is the L Series designed for?
Remote workers, artisan stall holders, shop owners, event organisers and mobile service technicians — anyone who needs 1200W or 2000W of clean, carryable power without a generator.
