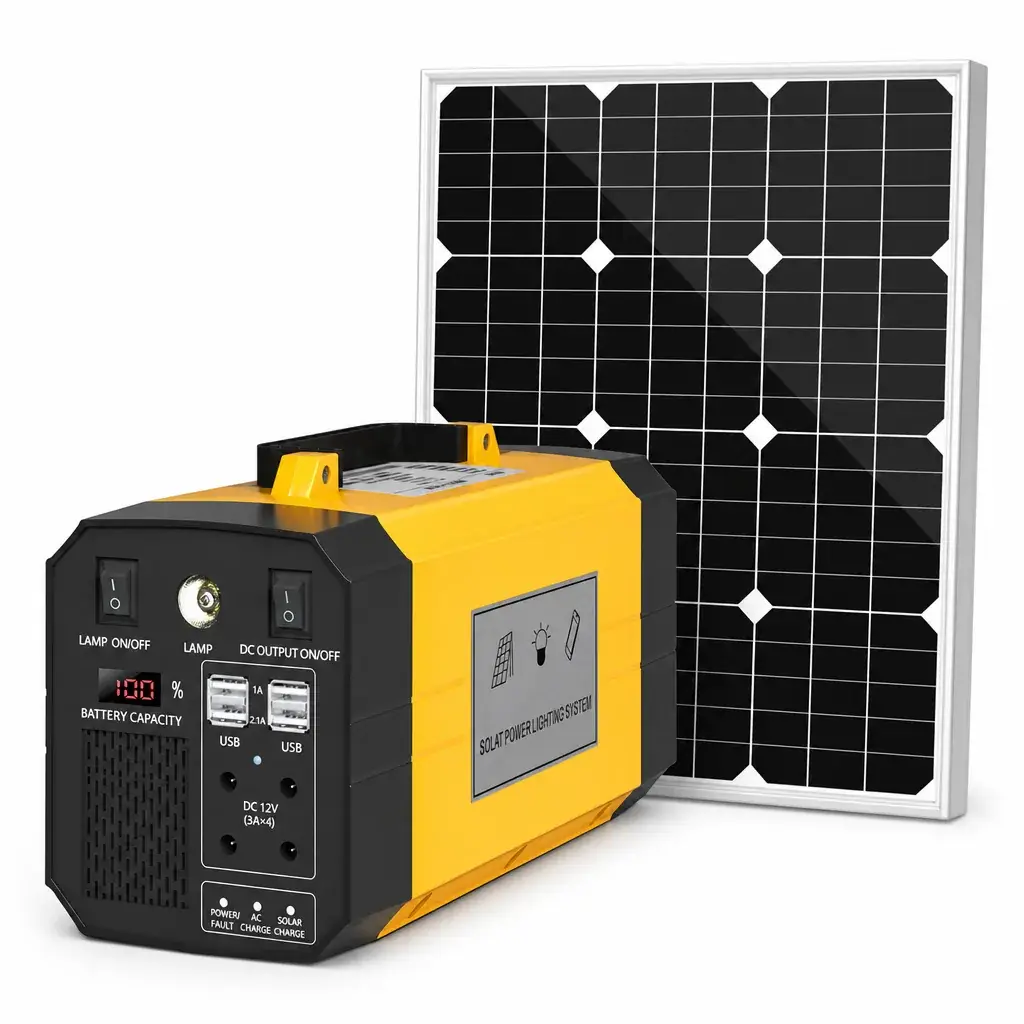

12V/5V DC Solar Power Station with Solar Panel (192Wh / 256Wh)
Price on request
The 12V/5V DC solar power station kit pairs a LiFePO4 power station (192Wh or 256Wh) with a foldable 12-cell monocrystalline solar panel. Four 12V/3A DC outputs, four USB ports (2.1A + 1A) and an LED lamp with digital capacity display — in an ABS flame-retardant case that works from -20 to 70°C and lasts about 2000 cycles. Recharge from solar, mains or a car socket in about 3 hours; five units per export carton. Factory-direct wholesale, OEM and distribution enquiries welcome.
This system is configured per project. Send us your requirements for a tailoredproposal within one business day.
Supplier’s customization ability verified
- Minor customization
- Drawing-based customization
- Sample-based customization
- Full customization
Guangdong Ruihan Electronics Technology Co., Ltd.
Guangzhou, CN ·3yrs · Multispecialty Supplier
4.9/5(14)
Store rating
≤3h
Response Time
≥ 95%
On-time dispatch rate
9%
Reorder rate
- Minor customization
- Drawing - based customization
Categories
How Can We Help You
You can contact us any way that isconvenient for you. We areavailable 24/7 via email ortelephone.
New Products
12V/5V DC Solar Power Station — Light Where the Grid Is Not
The Ruihan 12V/5V DC solar power station kit is a solar lighting and DC power system for off-grid homes, camps and emergency lighting. A LiFePO4 power station (192Wh or 256Wh) pairs with a foldable 12-cell monocrystalline solar panel to deliver light and charge wherever mains power is absent. Pure DC output feeds 12V lamps, fans and car-style devices directly — no inverter, no conversion loss.

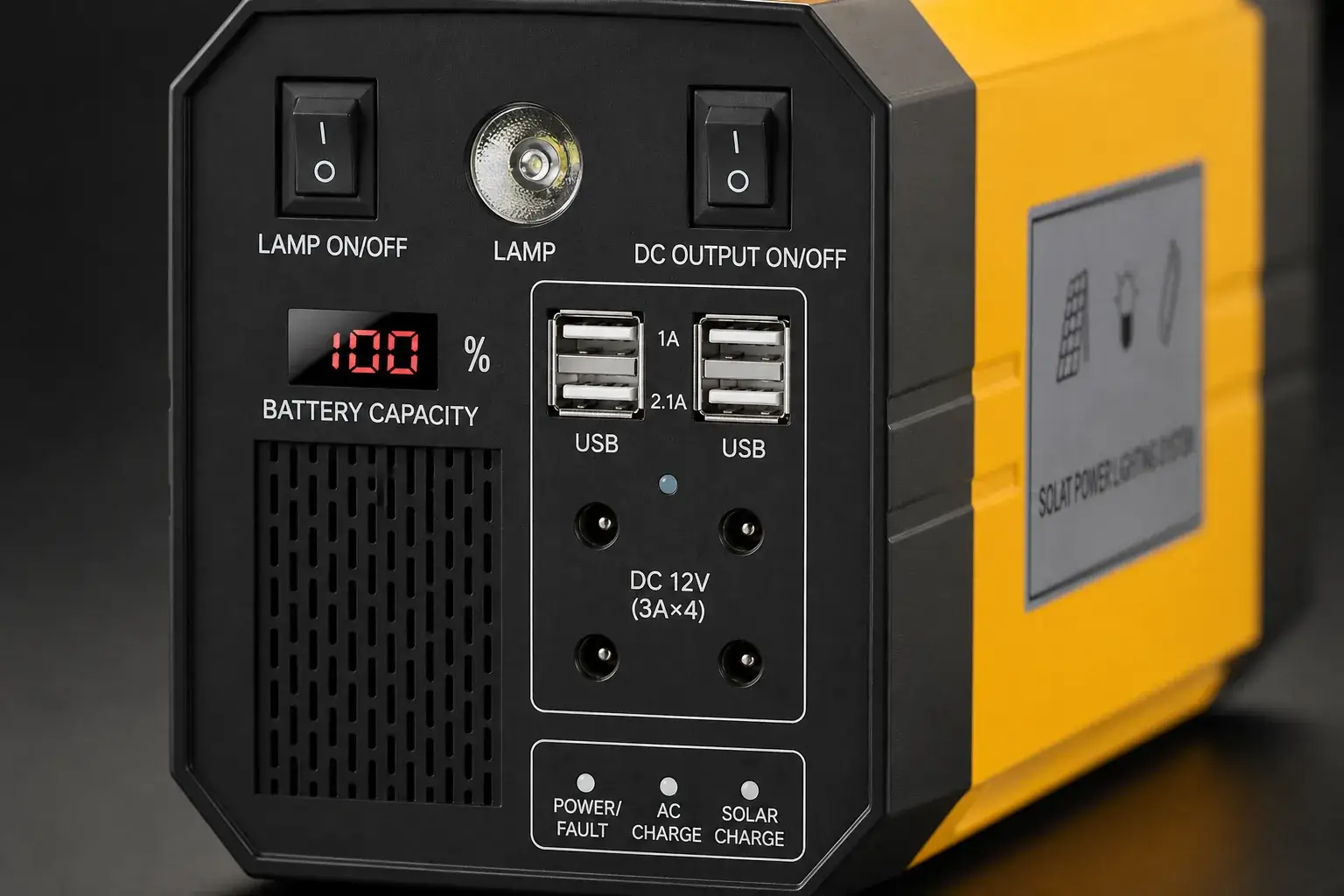

Two capacity grades share one compact case (25.2 x 11.3 x 15.4cm): the SPLS-15AH (192Wh, 2.0kg) and the SPLS-20AH (256Wh, 2.35kg). Both carry the same output panel — four 12V/3A DC sockets, four USB ports, an LED lamp head and a digital battery-capacity display — inside an ABS flame-retardant shell rated for about 2000 cycles from -20°C to 70°C.
Recharge three ways: the included solar panel in direct sun, a mains charger, or a car socket — a typical full charge takes about 3 hours. Five units pack per export carton (52 x 36 x 42cm), which keeps freight lean for distributors.
12V/5V DC Solar Power Station at a Glance
192-256Wh
Two Capacities
DC 12V
Direct Output ×4
~2000
LiFePO4 Cycles
3h
Typical Charge
-20~70°C
Working Range
Technical Specifications
| Parameter | SPLS-15AH (192Wh) | SPLS-20AH (256Wh) |
|---|---|---|
| Actual Capacity | 12.8V / 15Ah (192Wh) | 12.8V / 20Ah (256Wh) |
| Battery Type | LiFePO4 | LiFePO4 |
| Shell Material | ABS flame-retardant | ABS flame-retardant |
| DC Output | 12V/3A ×4 | 12V/3A ×4 |
| USB Output | 5V/2.1A ×2 + 5V/1A ×2 | 5V/2.1A ×2 + 5V/1A ×2 |
| LED Lamp | Built-in lamp head (LAMP ON/OFF) | Built-in lamp head (LAMP ON/OFF) |
| Display | LED digital battery capacity | LED digital battery capacity |
| Working Temperature | -20 ~ 70°C | -20 ~ 70°C |
| Cycle Life | ~2000 cycles | ~2000 cycles |
| Net Weight | 2.0kg | 2.35kg |
| Bare Size | 25.2 × 11.3 × 15.4cm | 25.2 × 11.3 × 15.4cm |
| Gross Weight | 3.0kg | 3.35kg |
| Charging Time | ~3h | ~3h |
| Charging Modes | Mains / Solar / Car | Mains / Solar / Car |
| Carton Size | 52 × 36 × 42cm (5pcs) | 52 × 36 × 42cm (5pcs) |

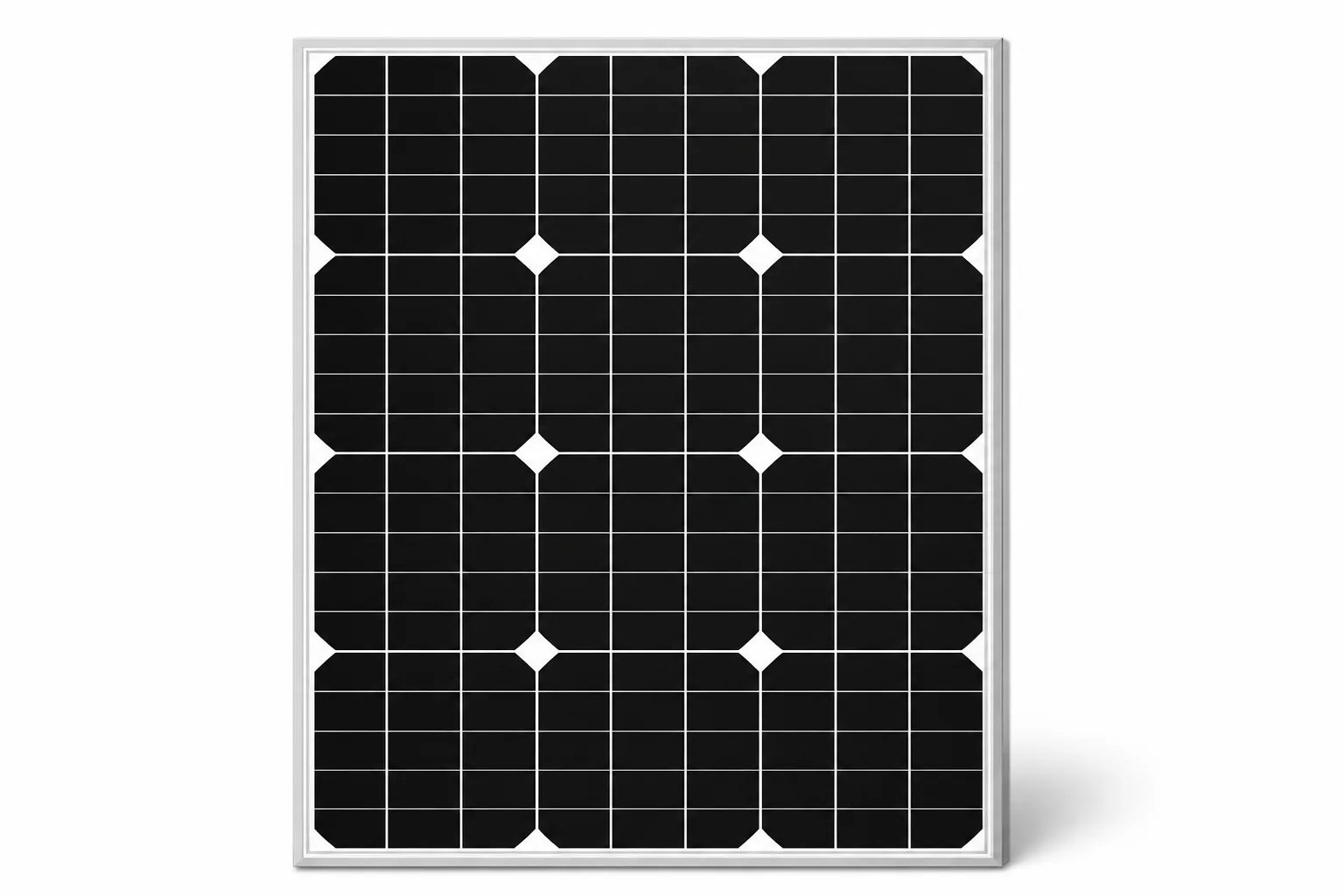

| Included Solar Panel | Foldable 12-cell monocrystalline | Foldable 12-cell monocrystalline |
* Ratings per the supplier specification sheet. Solar panel wattage was not stated in the sheet — confirm with the sales team when quoting. The side silkscreen reads “SOLAT POWER LIGHTING SYSTEM” (supplier spelling; recommend correcting to “SOLAR”). Both versions ship with the solar panel, mains charger and manual.
Frequently Asked Questions
Is this power station AC or DC?
DC only. It outputs 12V DC and USB 5V directly from the LiFePO4 battery — there is no AC inverter. It is built for 12V lighting, fans, radios and USB devices, which makes it efficient, silent and long-lasting for solar lighting applications.
Which version should I choose?
The SPLS-15AH (192Wh, 2.0kg) covers evening lighting and phone charging; the SPLS-20AH (256Wh, 2.35kg) adds runtime for larger households, longer outages or extra devices.
How do I recharge it?
Three ways: the included foldable solar panel in direct sun, a mains charger, or a 12V car socket. A typical full charge takes about 3 hours.
How long does the battery last?
The LiFePO4 cell is rated for roughly 2000 cycles and operates from -20°C to 70°C, so it suits daily use in hot off-grid climates.
Can I order with my own brand?
Yes. The case is neutral and OEM-ready; custom silkscreen, packaging and carton marking are available with MOQ. Contact our sales team for the OEM terms.
Is the kit available for wholesale?
Yes. Five units pack per export carton (52 × 36 × 42cm). Ruihan supplies factory-direct for wholesale distribution and OEM/ODM — ask for tiered pricing, MOQ and lead times.
